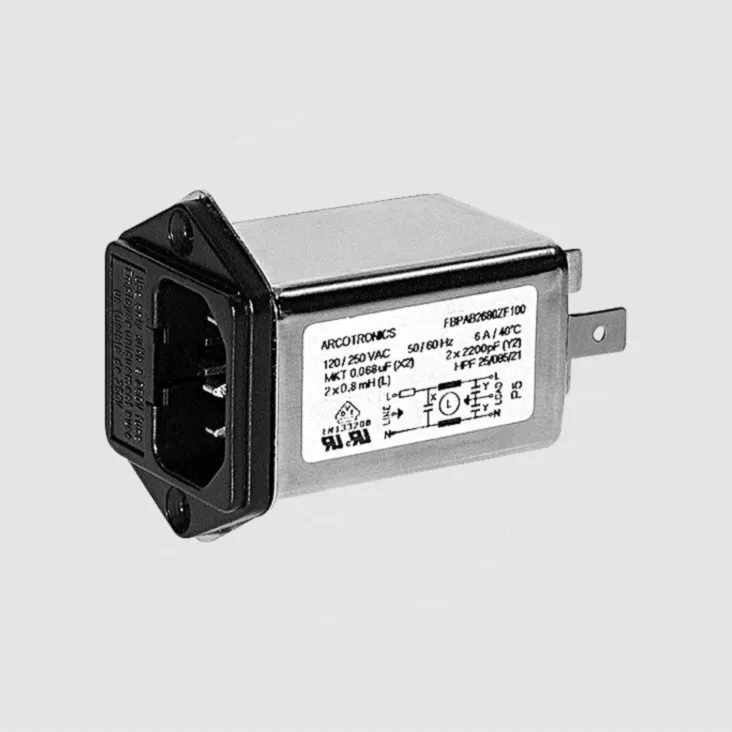

Line Filter IEC Plug Fuse 6A
Varenummer:
86-352
Varekode: FIL2680BP
Vægt: 58 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 2/11
Gruppe:
D3241
KEMET/ARCOTRONICS RFI Suppression Filters with IEC/CEE Plug
Series: 2680
In Metal Housing
KEMET/ARCOTRONICS RFI Suppression Filters with IEC/CEE Plug
Series: 2680
In Metal Housing
| Features |
| Filter built in a metal housing with integrated power line connector and fuse holder Fuse holder for 5x20mm fuse Faston plug terminal 6,3x0,8mm Screw mounting |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 3kV DC or 1,8kV AC |
| Line To Line: | 1,7kV DC |
| Temperature Range: | -25...+85C |
| Climatic Category: | HPF (25/085/21) |
| |
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [µF] | [pF] | [mA] | |
| FIL2680BP | 6 | 2x0,8 | 0,068 | 2x2200 | 2x0,2 |
| IR = Rated Current, at 40C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz | |||||
| |||||
| Approvals |
 EN133200,  c |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
Produktfiler
