Line Filter IEC Plug 2470 10A
Varenummer:
86-351
Varekode: FIL2470
Vægt: 41 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 2/11
Gruppe:
D3221
KEMET/ARCOTRONICS RFI Suppression Filters with IEC/CEE Plug
In Metal Housing
KEMET/ARCOTRONICS RFI Suppression Filters with IEC/CEE Plug
In Metal Housing
| Features |

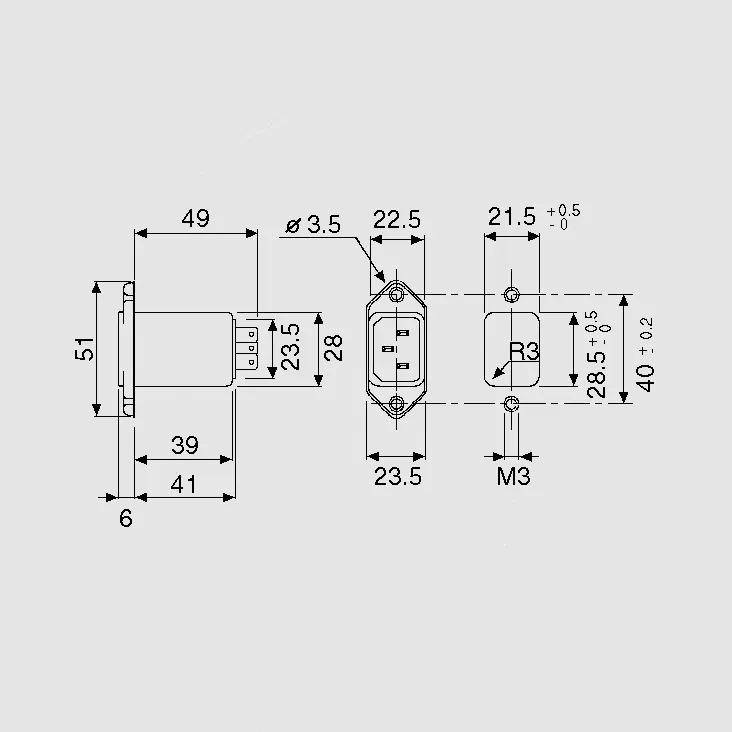

| Filter built in a metal housing with integrated power line connector Faston plug terminal 6,3x0,8mm |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 3kV DC or 1,8kV AC |
| Line To Line: | 1,7kV DC |
| Temperature Range: | -25...+85C |
| Climatic Category: | HPF (25/085/21) |
| |
| Part Nr. | IR | L | CX | CY | IL | Circuit |
| [A] | [mH] | [µF] | [pF] | [mA] | Diagram | |
| FIL3100-1 | 1 | 2x10 | 0,1 | 2x2500 | 2x0,23 | B |
| FIL2680-3 | 3 | 2x2,5 | 0,068 | 2x2500 | 2x0,23 | A |
| FIL3100-6 | 6 | 2x1 | 0,1 | 2x2500 | 2x0,23 | B |
| FIL2470 | 10 | 2x0,13 | 0,047 | 2x2500 | 2x0,2 | A |
| IR = Rated Current, at 40C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz | ||||||
| ||||||
| Approvals |
 EN133200,  c |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
Produktfiler
