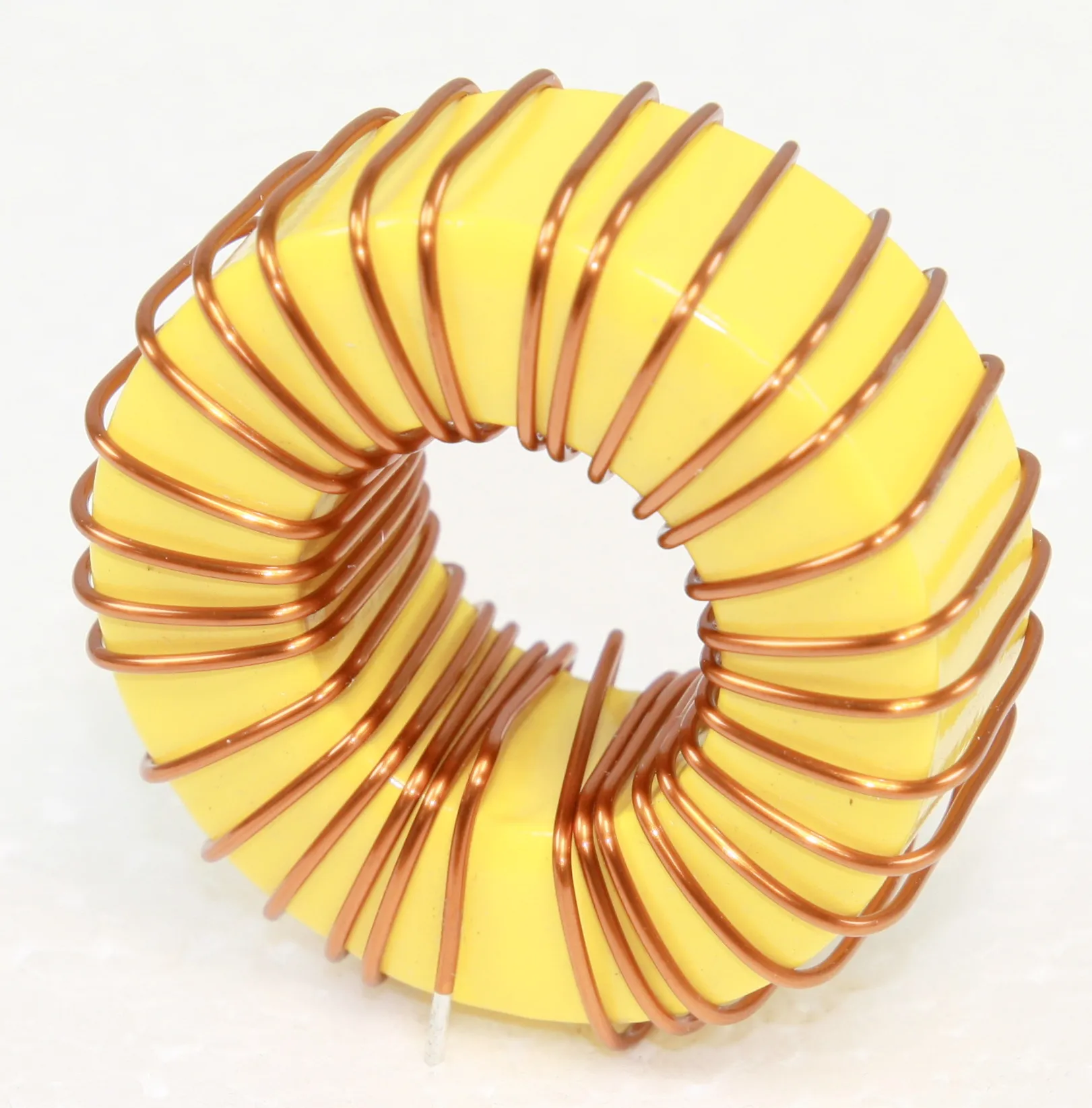

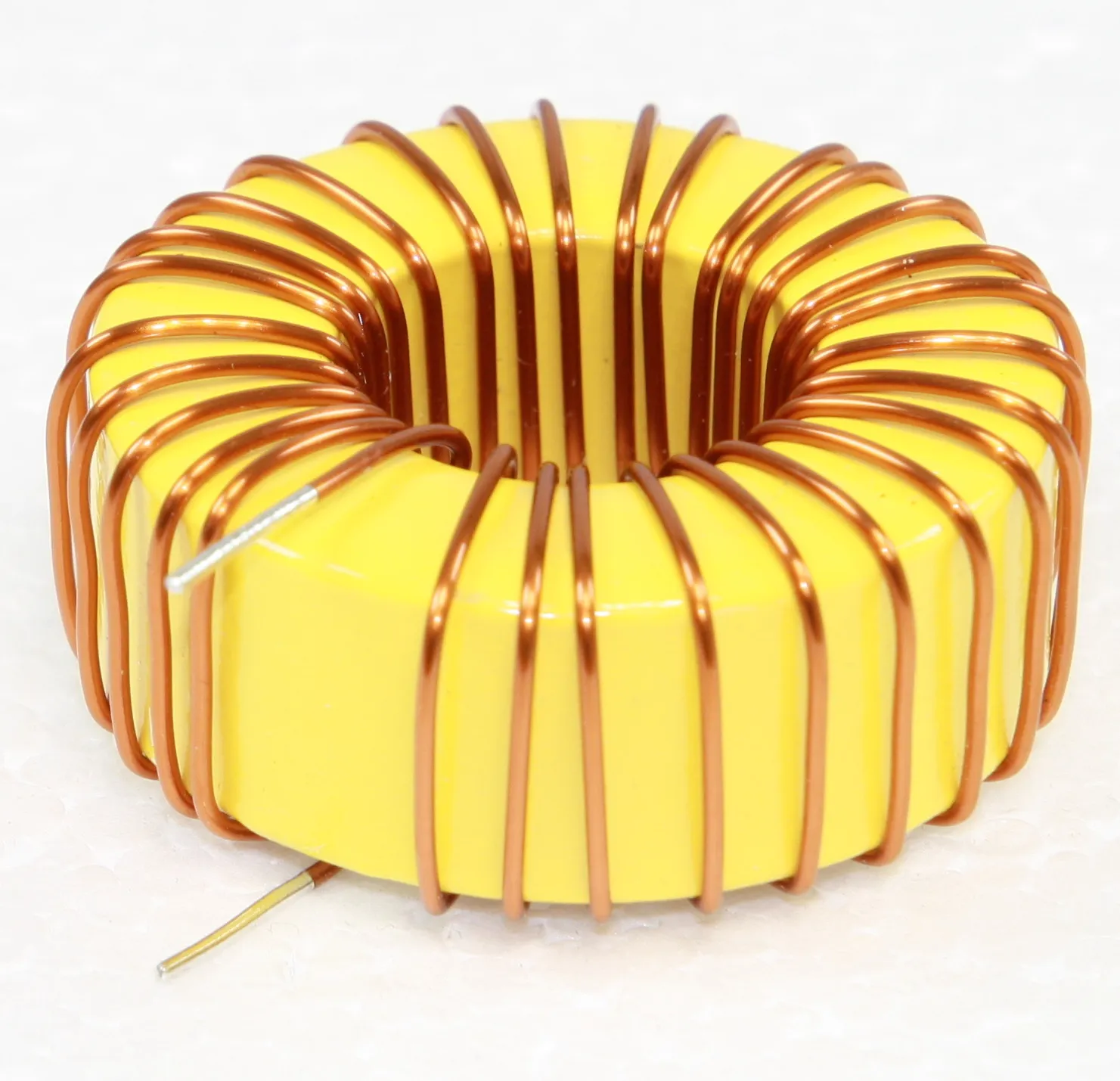

Inductor 100uH 10A
Varenummer:
86-268
Varekode: DPU100A10
Vægt: 185 g
3 stk.
på lager
Specifikationer
| Strøm, max. | 10 A |
|---|---|
| Induktans | 100 µH |
Gruppe:
D2279
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 10A
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 10A
| Technical Specifications |
| Part Nr. | IN | LN | L0 | RDC | E | a | b |
| [A] | [µH] | [µH] | W | [µJ] | [mm] | [mm] | |
| DPU68A10 | 10,0 | 68 | 89 | 0,042 | 3400 | 50 | 21 |
| DPU100A10 | 10,0 | 100 | 152 | 0,044 | 5000 | 50 | 21 |
| IN = Rated Current, LN = Inductive Load, Min., L0 = Inductance, No Load (0,1V AC @ 10kHz, ±15%, at 25C), RDC = DC Resistance, Max., E = Energy Stored, Min. | |||||||
 | |||||||
| Note |
| General product information see introduction text "D2271 to D2284" before product group D2271. |
|
| Additional Products |
| Orders of 200 pieces on request, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.talema.de |
|
Produktfiler
