Inductor 68uH 5A
Varenummer:
86-259
Varekode: DPU68A5
Vægt: 7 g
0 stk.
på lager
Specifikationer
| Induktans | 68 µH |
|---|---|
| Strøm, max. | 5 A |
Gruppe:
D2275
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 5A
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 5A
| Technical Specifications |

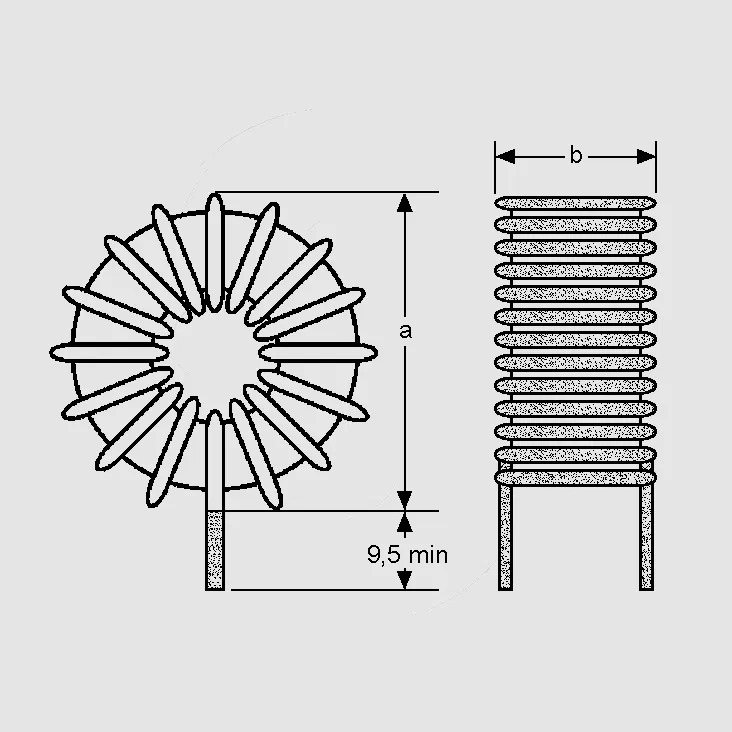

| Part Nr. | IN | LN | L0 | RDC | E | a | b |
| [A] | [µH] | [µH] | W | [µJ] | [mm] | [mm] | |
| DPU33A5 | 5,0 | 33 | 48 | 0,036 | 413 | 25 | 12 |
| DPU47A5 | 5,0 | 47 | 82 | 0,043 | 588 | 25 | 12 |
| DPU68A5 | 5,0 | 68 | 137 | 0,055 | 850 | 26 | 12 |
| DPU100A5 | 5,0 | 100 | 172 | 0,059 | 1250 | 30 | 13 |
| DPU150A5 | 5,0 | 150 | 221 | 0,094 | 1875 | 41 | 13 |
| DPU220A5 | 5,0 | 220 | 381 | 0,097 | 2750 | 41 | 13 |
| IN = Rated Current, LN = Inductive Load, Min., L0 = Inductance, No Load (0,1V AC @ 10kHz, ±15%, at 25C), RDC = DC Resistance, Max., E = Energy Stored, Min. | |||||||
 | |||||||
| Note |
| General product information see introduction text "D2271 to D2284" before product group D2271. |
|
| Additional Products |
| Orders of 200 pieces on request, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.talema.de |
|
