Inductor 22uH 3A
Varenummer:
86-248
Varekode: DPU022A3
Vægt: 4 g
10 stk.
på lager
Specifikationer
| Strøm, max. | 3 A |
|---|---|
| Induktans | 22 µH |
Gruppe:
D2274
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 3A
TALEMA Storage/Suppression Chokes
Series: DPU
Open Mount
Rated Current: 3A
| Technical Specifications |

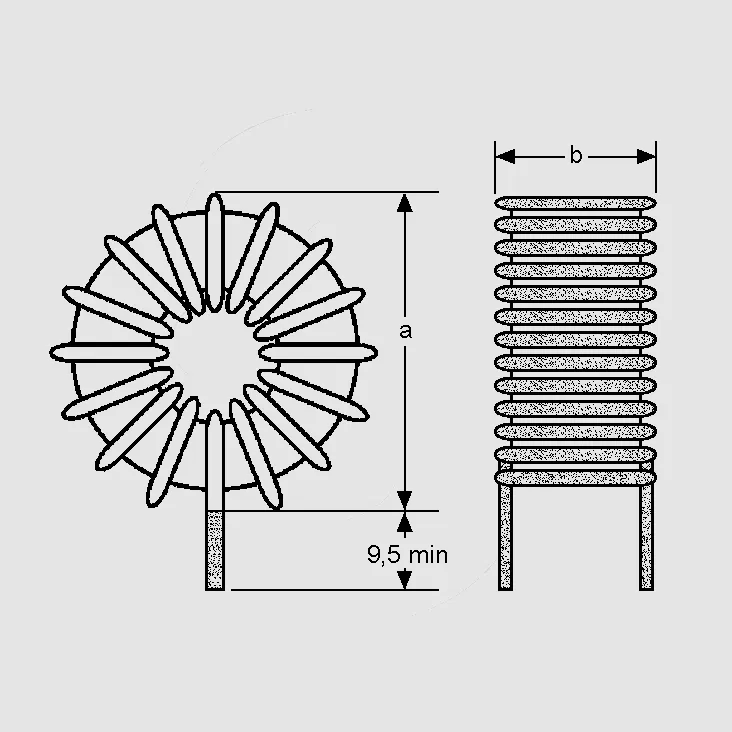

| Part Nr. | IN | LN | L0 | RDC | E | a | b |
| [A] | [µH] | [µH] | W | [µJ] | [mm] | [mm] | |
| DPU022A3 | 3,0 | 22 | 34 | 0,050 | 99 | 14 | 8 |
| DPU033A3 | 3,0 | 33 | 49 | 0,038 | 149 | 19 | 8 |
| DPU047A3 | 3,0 | 47 | 75 | 0,048 | 212 | 20 | 8 |
| DPU068A3 | 3,0 | 68 | 92 | 0,060 | 306 | 25 | 12 |
| DPU100A3 | 3,0 | 100 | 157 | 0,080 | 458 | 25 | 12 |
| DPU150A3 | 3,0 | 150 | 256 | 0,107 | 675 | 25 | 12 |
| DPU220A3 | 3,0 | 220 | 346 | 0,134 | 990 | 29 | 13 |
| DPU330A3 | 3,0 | 330 | 625 | 0,142 | 1485 | 30 | 14 |
| DPU470A3 | 3,0 | 470 | 727 | 0,187 | 2115 | 42 | 14 |
| IN = Rated Current, LN = Inductive Load, Min., L0 = Inductance, No Load (0,1V AC @ 10kHz, ±15%, at 25C), RDC = DC Resistance, Max., E = Energy Stored, Min. | |||||||
 | |||||||
| Note |
| General product information see introduction text "D2271 to D2284" before product group D2271. |
|
| Additional Products |
| Orders of 200 pieces on request, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.talema.de |
|
