• Two separated windings for minimum capacitance
• Maximum ambient temperature +60°C
|
 |
|
|
|
|
Part Nr.
|
IN
|
L0
|
RDC
|
| |
[A]
|
[mH]
|
[mW]
|
| CAF400A47 |
0,4
|
47
|
1,942
|
| CAF500A27 |
0,5
|
27
|
1,179
|
| CAF1000A27 |
1,0
|
27
|
537
|
| CAF600A18 |
0,6
|
18
|
868
|
| CAF700A10 |
0,7
|
10
|
647
|
| CAF1100A6,8 |
1,1
|
6,8
|
342
|
| CAF1500A3,3 |
1,5
|
3,3
|
165
|
| CAF2000A1 |
2,0
|
1,0
|
65
|
| CAF3600A0,47 |
3,6
|
0,47
|
28
|
IN = Rated Current, L0 = Inductance, No Load ±30% (at 25°C/10kHz), RDC = DC Resistance
|
|
|
|
|
|
|
|

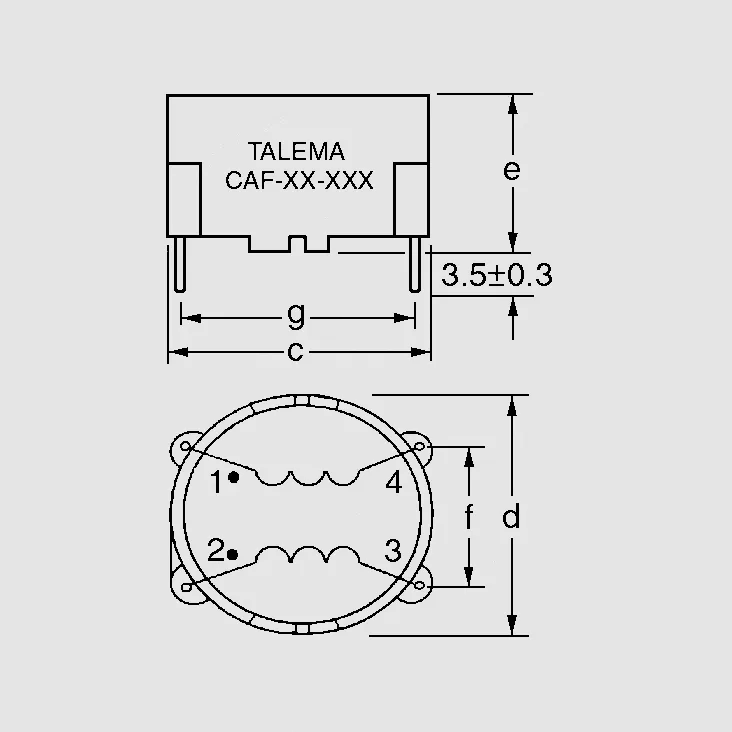

Part Nr.
|
c
|
d
|
e
|
f
|
g
|
| |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| CAF400A47 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF500A27 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF1000A27 |
27,5
|
27
|
17,5
|
15,0
|
25
|
| CAF600A18 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF700A10 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF1100A6,8 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF1500A3,3 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF2000A1 |
17,5
|
17
|
12,5
|
10,0
|
15
|
| CAF3600A0,47 |
17,5
|
17
|
12,5
|
10,0
|
15
|
|
|
