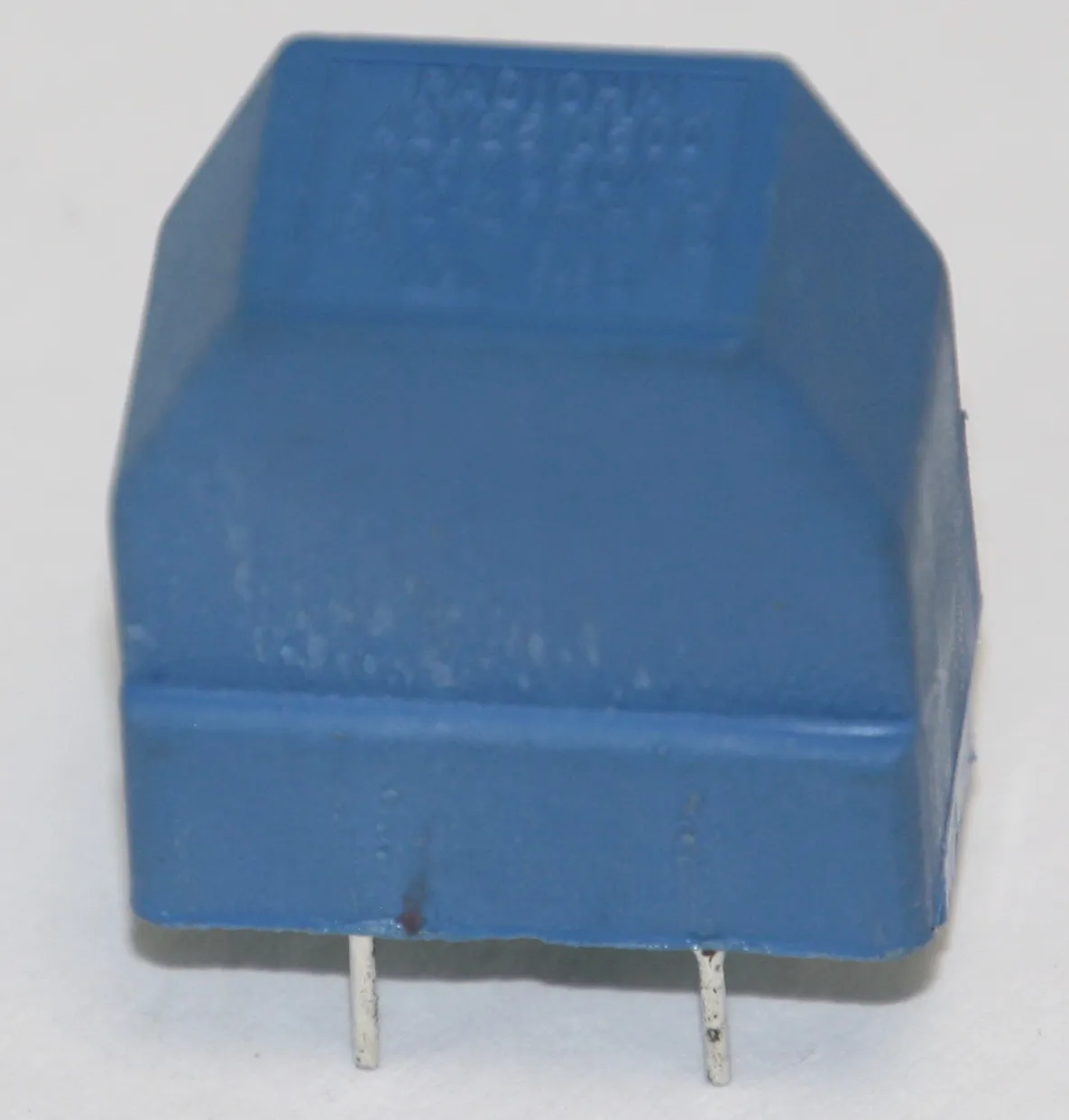

Choke 2x27mH 0,5A P10 Vertical
Varenummer:
86-166
Varekode: 42V250500
Vægt: 20 g
2 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 20 stk. kan skaffes søndag d. 25/10
Specifikationer
| Strøm, max. | 0.5 A |
|---|---|
| Induktans | 27 mH |
Features
| • Used for the suppression of asymmetrical interference signals on power supply lines • To suppress most of power line-tied interference signals • Fitted with a high-permeability toroid core (ferrite) • Encased in a flame retardant plastic material in accordance with UL94V-0 for horizontal or vertical mounting • 32V31A600SV3: not potted, for vertical mounting • 4 tinned soldering pins, d=0,8mm |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 250V |
| Rated Current: | See Table |
| Rated Inductance: | See Table |
| Inductance Tolerance: | ±30% |
| Inductance Loss: | 10% at DC Initial Loading with IN |
| Testing Voltage: | 1500V/50Hz, 2s, |
| Winding to Winding | |
| Climatic Category: | DIN GKC (-40...+125°C) |
| Humidity: | Cat. C |
| Ambient Temperature: | +60°C |
| Derating (Dependent on TU): | I=0 (+120°C) |
| Overtemperature of Windings: | 55°C at Rated Current |
| Temperature of Windings, Max.: | 115°C |
|
|
| Horizontal | Vertical | IN | LO | RN |
| [A] | [mH] | [mOhm] | ||
| 42H171000 | 42V201000 | 1 | 6,8 | 400 |
| 42H172000 | 42V202000 | 2 | 3,9 | 80...100 |
| 42H172500 | 42V202500 | 2,5 | 2,7 | 120...160 |
| 42H173000 | 42V203000 | 3 | 1 | 50 |
| 42H173600 | - | 3,6 | 0,4 | 15 |
| 42H220300 | 42V250300 | 0,3 | 47 | 1400 |
| 42H220500 | 42V250500 | 0,5 | 27 | 900 |
| 42H221000 | 42V251000 | 1 | 10 | 450 |
| 42H222000 | 42V252000 | 2 | 2,2 | 70 |
| 42H223000 | 42V253000 | 3 | 1,2 | 70 |
| 42H271000 | 42V301000 | 1 | 27 | 600 |
| - | 42V302000 | 2 | 5,6 | 170 |
| 42H274000 | 42V304000 | 4 | 2,7 | 45 |
| - | 42V320500 | 0,5 | 100 | 1500 |
| - | 42V321000 | 1 | 47 | 750 |
| - | 42V321500 | 1,5 | 22 | 330 |
| 42H322000 | 42V322000 | 2 | 6,8 | 139 |
| 42H324000 | 42V324000 | 3,3 | 1,0 | 54 |
| 42H326000 | - | 6,0 | 1,8 | 25 |
| 42H42A000 | - | 10 | 1,8 | 14 |
| 42H428000 | - | 8 | 2,7 | 22 |
| 32V31A600SV3 | 16 | 2,7 | 15 | |
| IN = Rated Current per Winding, 50Hz,TU=60°C, LO = Inductance, No Load, 16kHz,TU=20°C, RN = DC Resistance per Winding, Typical | ||||
|
||||
| Dimensions |
| Part Nr. | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| 42H17_ | 10 | 18 | 15 | 17,5 | 12,5 |
| 42H22_ | 12,5 | 23 | 20 | 22,5 | 13 |
| 42H27_ | 15 | 27,4 | 25 | 27,5 | 16,5 |
| 42H32_ | 20 | 32 | 30 | 32,5 | 19,5 |
| 42H42_ | 15 | 42 | 40 | 43 | 25 |
| 42V20_ | 10 | 12,5 | 15 | 18 | 20 |
| 42V25_ | 12,5 | 15 | 10 | 23 | 25 |
| 42V30_ | 15 | 17,5 | 12,5 | 27 | 30 |
| 42V32_ | 15 | 17,5 | 12,5 | 31 | 32,5 |
|
|||||
