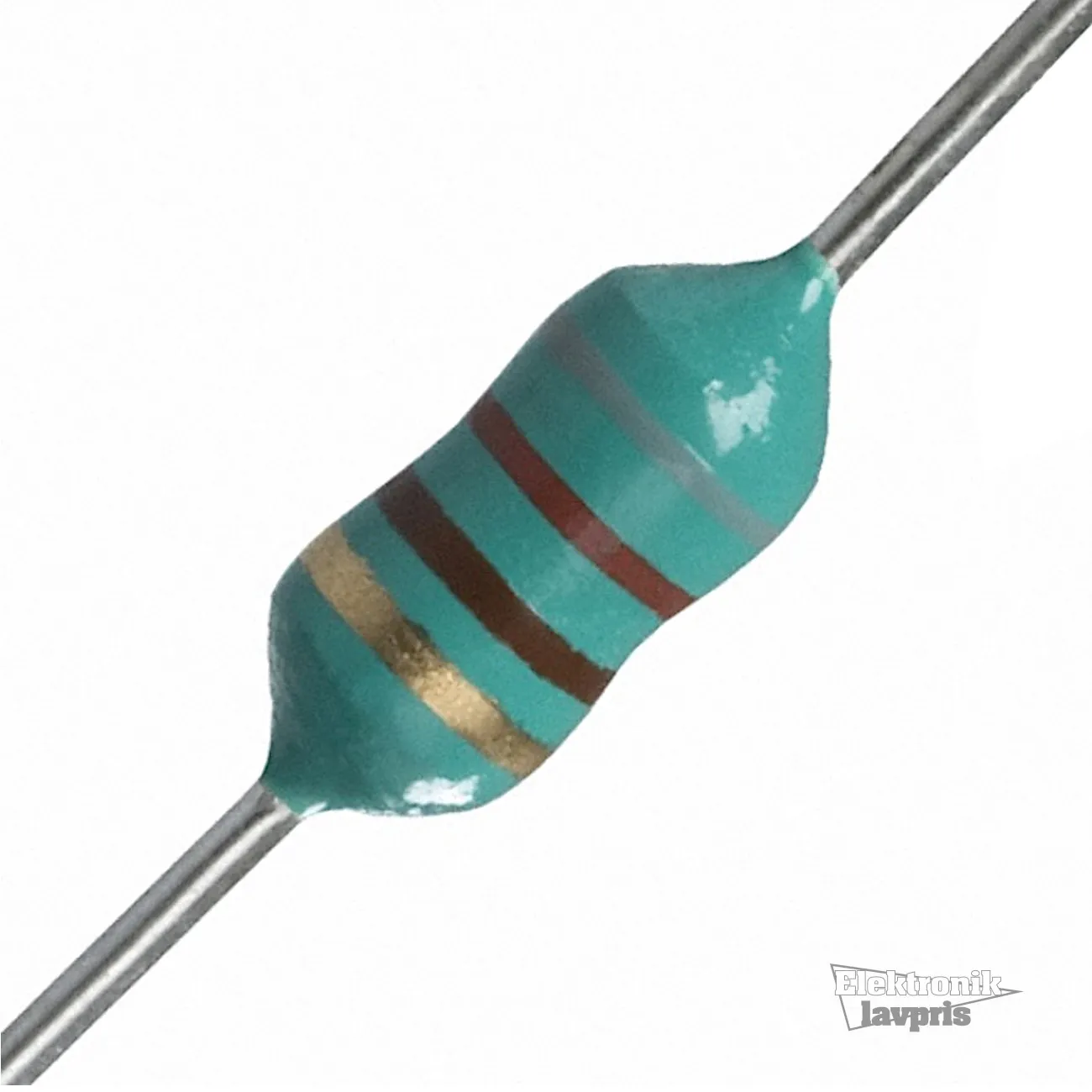

Inductor Axial 2,2mH 110mA 5x14mm
Varenummer:
86-127
Varekode: EC46-222J
Vægt: 0 g
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 4700 stk. kan skaffes torsdag d. 29/10
Specifikationer
| Strøm, max. | 0.11 A |
|---|---|
| Induktans | 2.2 mH |
Gruppe:
D1115
CTC Miniature Fixed Inductors
Series: EC46
Axial
Style: Taped
Tolerance: 10%
Housing: 5,2x10mm
CTC Miniature Fixed Inductors
Series: EC46
Axial
Style: Taped
Tolerance: 10%
Housing: 5,2x10mm
| Technical Specifications |
 | |
| Temperature Range: | -20...+100C |
| Dielectric Strength: | 250Vrms |
| Inductance (DL): | ±5% |
| |
| Part Nr. | L | Q | fQ | f | RDC | IN |
| [mH] | [kHz] | [MHz] | W | [mA] | ||
| EC46-102J | 1,0 | 80 | 252 | 1,7 | 8 | 200 |
| EC46-222J | 2,2 | 80 | 252 | 1,2 | 14 | 120 |
| EC46-103J | 10,0 | 60 | 79,6 | 0,5 | 74 | 65 |
| L = Inductance, Q = Quality Class, Min., fQ = Testing Frequency of L and Q, f = Resonance Frequency, Min., RDC = DC Resistance, Max., IN = Rated DC Current | ||||||
| ||||||
| Note |
| Colour Code please see product group D1112 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
| CTC http://www.ctccoils.com |
|
Inkl. moms
Kr. 7,60
- v/10 – Kr. 5,06
- v/25 – Kr. 3,04
- v/100 – Kr. 2,03
- v/1000 – Kr. 1,01
