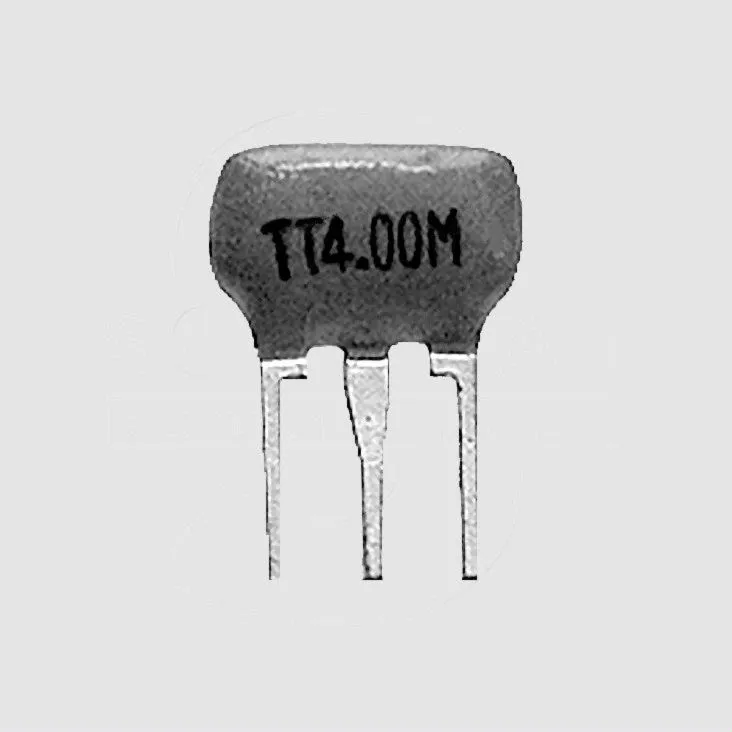

Ceramic Resonator 3-Pole 4,00MHz
Varenummer:
86-102
Varekode: ZTTWS4.0MG
Vægt: 0 g
16 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Yderligere kan skaffes mandag d. 9/11
Gruppe: D9521
Ceramic Resonators
Series: ZTT
With Load Capacitance
Frequency: 3,58...12MHz
Ceramic Resonators
Series: ZTT
With Load Capacitance
Frequency: 3,58...12MHz
| Technical Specifications |
| Part Nr. | f | Tol. | TStab | Age |
| [MHz] | [%] | [%] | [%] | |
| ZTTWS3.58MG | 3,58 | ±0,5 | ±0,3 | ±0,3 |
| ZTTWS4.0MG | 4,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTTWS6.00MG | 6,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTT8.00MT | 8,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTT12.00MT | 12,00 | ±0,5 | ±0,3 | ±0,3 |
| f = Frequency, Tol. = Frequency, TStab = Temperature Stability, -20...+80C, Age = Aging for 10 Years | ||||
 | ||||
| Part Nr. | Rres | Uwith | Riso | C1/C2 |
| [W] | [V DC] | [W] | [pF] | |
| ZTTWS3.58MG | 35 | 100 | 5x108 | 30 |
| ZTTWS4.0MG | 30 | 100 | 5x108 | 30 |
| ZTTWS6.00MG | 30 | 100 | 5x108 | 30 |
| ZTT8.00MT | 25 | 100 | 5x108 | 30 |
| ZTT12.00MT | 25 | 100 | 5x108 | 30 |
| Rres = Resonant Resistance, Uwith = Voltage Sustaining Capability, 5s, Riso = Insulation Resistance, C1/C2 = Load Capacitance | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 22,50
- v/10 – Kr. 21,25
- v/25 – Kr. 20,00
- v/100 – Kr. 18,75
Produktfiler
