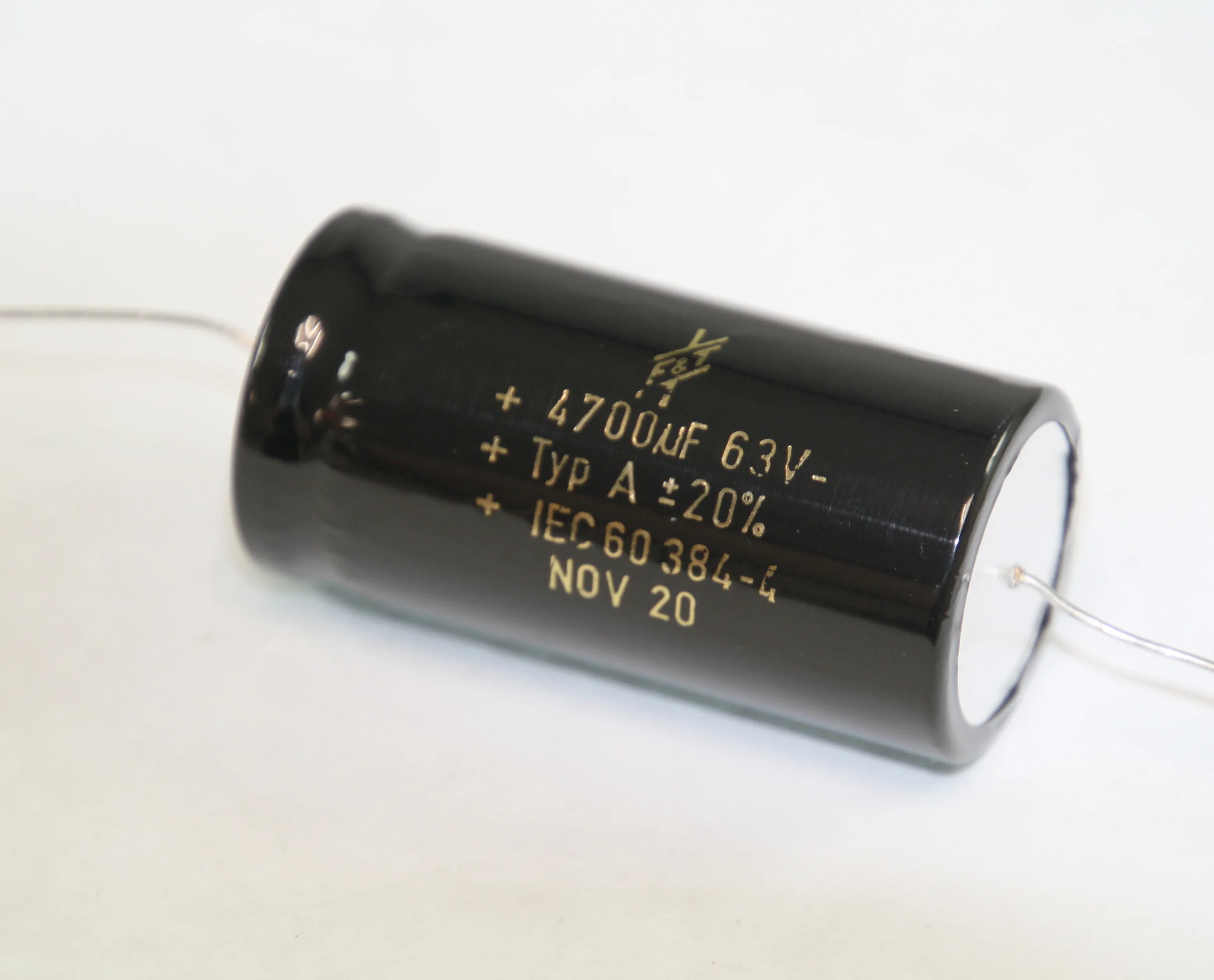

El-Capacitor 4700uF/63V 25x49mm Bulk
Varenummer:
85-887
Varekode: CAX04700/63
Vægt: 36 g
34 stk.
på lager
Specifikationer
| Produkt | kondensator |
|---|---|
| Kondensator-type | axial |
| Temperatur | -40 – 85 °C |
| Spænding, max. | 63 V |
| Tolerance | ±20 % |
| Længde | 4.9 cm |
| Diameter | 2.5 cm |
| Kapacitans | 4 700 µF |
Gruppe:
C6627
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 63V DC
Tolerance: 20%
Temperature Range: -40...+105°C
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 63V DC
Tolerance: 20%
Temperature Range: -40...+105°C
| Features |
| Polarized High ripple current Max. Reverse Voltage: 2V |
 |
| Technical Specifications |
| Part Nr. | C | tand | RESR | Z | D | L | d |
| CAX_ | [µF] | [%] | W | W | [mm] | [mm] | [mm] |
| 00220/63 | 220 | 8 | 0,6 | 0,4 | 10 | 25 | 0,8 |
| 01000/63 | 1000 | 11 | 0,18 | 0,12 | 16 | 39 | 0,8 |
| 02200/63 | 2200 | 22 | 0,142 | 0,095 | 21 | 36 | 0,8 |
| 04700/63 | 4700 | 18 | 0,06 | 0,04 | 25 | 49 | 0,8 |
| C = Rated Capacitance, tan d = Dissipation Factor (100Hz, 20C), RESR = ESR (100Hz, 20C), Z = Impedance (10kHz, 20C) | |||||||
| |||||||
| Norms |
| IEC 384-4 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces 1000µF...4700µF: 1 PKU = 10 pieces Form of delivery: Bulk |
|
| Manufacturer |
 |
| http://www.ftcap.de |
|
Inkl. moms
Kr. 97,19
- v/10 – Kr. 79,14
- v/25 – Kr. 70,12
Produktfiler
El-Capacitor 4700uF/63V 25x49mm Bulk
85-887
/ CAX04700/63
34 stk.
på lager
Specifikationer
- Produkt kondensator
- Kondensator-type axial
- Temperatur -40 – 85 °C
- Spænding, max. 63 V
- Tolerance ±20 %
- Længde 4.9 cm
- Diameter 2.5 cm
- Kapacitans 4 700 µF
Gruppe:
C6627
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 63V DC
Tolerance: 20%
Temperature Range: -40...+105°C
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 63V DC
Tolerance: 20%
Temperature Range: -40...+105°C
| Features |
| Polarized High ripple current Max. Reverse Voltage: 2V |
|
| Technical Specifications |
| Part Nr. | C | tand | RESR | Z | D | L | d |
| CAX_ | [µF] | [%] | W | W | [mm] | [mm] | [mm] |
| 00220/63 | 220 | 8 | 0,6 | 0,4 | 10 | 25 | 0,8 |
| 01000/63 | 1000 | 11 | 0,18 | 0,12 | 16 | 39 | 0,8 |
| 02200/63 | 2200 | 22 | 0,142 | 0,095 | 21 | 36 | 0,8 |
| 04700/63 | 4700 | 18 | 0,06 | 0,04 | 25 | 49 | 0,8 |
| C = Rated Capacitance, tan d = Dissipation Factor (100Hz, 20C), RESR = ESR (100Hz, 20C), Z = Impedance (10kHz, 20C) | |||||||
| |||||||
| Norms |
| IEC 384-4 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces 1000µF...4700µF: 1 PKU = 10 pieces Form of delivery: Bulk |
|
| Manufacturer |
| |
| http://www.ftcap.de |
|
