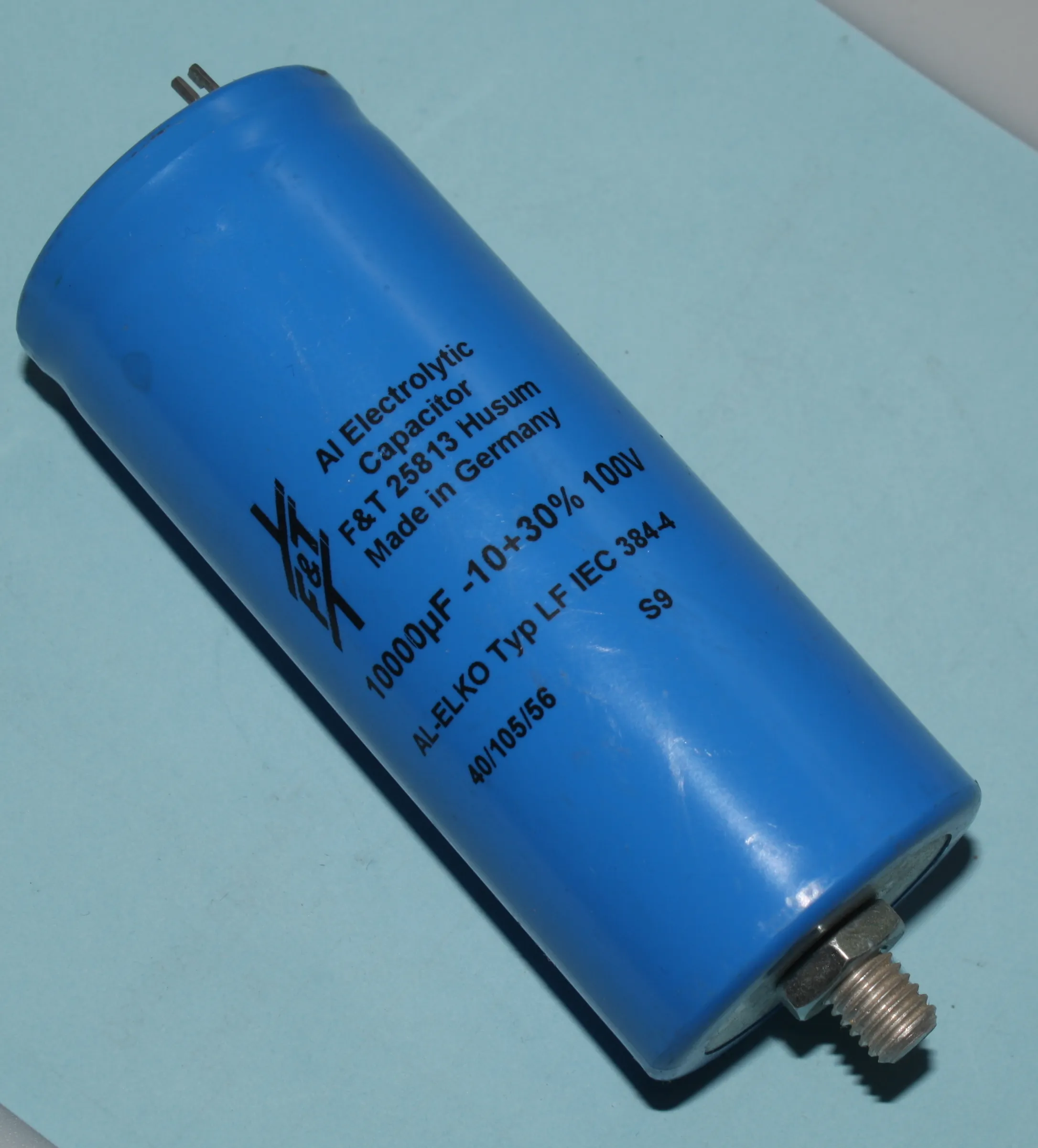

El-Capacitor 10000µF/100V-P20 40x95mm
Varenummer:
85-858
Varekode: CSHT10000/100-P20
Vægt: 195 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem fredag d. 16/10
Specifikationer
| Kondensator-type | radial |
|---|---|
| Produkt | kondensator |
| Tolerance | -10 / +30 % |
| Temperatur | -40 – 105 °C |
| Spænding, max. | 100 V |
| Benafstand | 2 cm |
| Højde | 9.5 cm |
| Diameter | 4 cm |
| Kapacitans | 10 000 µF |
Gruppe: C6511
F&T Electrolytic Capacitors
Series: LFB
Soldering Lug, Stud Mounted
Style: Bulk
Rated Voltage: 40...100V DC
Tolerance: -10...+30%
Temperature Range: -40...+105°C
LFB10000/100
| Features |
| • Encasement and non-isolated stud on negative polarity |
 |
| Technical Specifications |
| Part Nr. | CN | UN | tand | IR | Z | [µF] | [V=] | [%] | [A] | [mW] | LFB4700/63 | 4700 | 63 | 15 | 4,0 | 50 | LFB10000/40 | 10000 | 40 | 20 | 4,5 | 40 | LFB10000/63 | 10000 | 63 | 16 | 5,5 | 30 | LFB10000/100 | 10000 | 100 | 15 | 5,4 | 40 | |||||||
| C = Capacitance, UN = DC Voltage Rating, tan d = Dissipation Factor (100Hz, 20°C), IR = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (-25...+25°C, 100Hz) | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Dimensions |
| Part Nr. | D | L | a | [mm] | [mm] | [mm] | LFB4700/63 | 35 | 50 | 10 | LFB10000/40 | 35 | 50 | 10 | LFB10000/63 | 35 | 66 | 10 | LFB10000/100 | 40 | 95 | 20 | ||||||||||||
|
||||||||||||||||||||||||||||||||||
| Norms |
| IEC 384-4, climatic class 40/105/56 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces LFB10000/100: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.ftcap.de |
|
Inkl. moms
Kr. 212,50
- v/10 – Kr. 186,25
- v/25 – Kr. 167,50
- v/100 – Kr. 156,56
