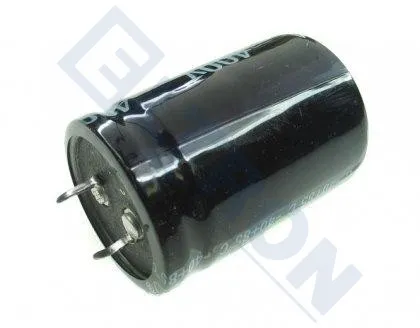

El-Capacitor 100µF/400V-P10-22x30

Name: El-Capacitor 100µF/400V-P10-22x30
SKU: 85832
Price: 24.75 DKK
Availability: InStock

Varenummer: 85-832

Varekode: CS0100/400-P10

Vægt: 17 g

5 stk. på lager

Bestil nu for afsendelse mandag d. 5/10

Yderligere 1910 stk. kan skaffes fredag d. 16/10

Vis lignende produkter i kategorien "400V"

Specifikationer

Kondensator-type	radial
Produkt	kondensator
Temperatur	-25 – 85 °C
Spænding, max.	400 V
Tolerance	±20 %
Benafstand	1 cm
Højde	3 cm
Diameter	2.2 cm
Kapacitans	100 µF

Gruppe: C6415
JAMICON Electrolytic Capacitors
Series: LPW
Snap-In
Style: Bulk
Rated Voltage: 35...400V DC
Tolerance: 20%
Temperature Range: -40/-25...+85°C

CLPW100/400

Technical Specifications


Operating Temperature Range	35V, 50V:	-40...+85°C	250V, 400V:	-25...+85°C	Leakage Current (Peak Value after 5min.):	I_L£0,03xCxU_N or 3mA

	Part Nr.	C	U_N	tand	I_R	Z	D	L	[µF]	[V=]	[A]	[V/A]	[mm]	[mm]	CLPW47/400	47	400	0,25	0,43	8	22	25	CLPW100/400	100	400	0,25	0,68	8	22	30	CLPW220/400	220	400	0,25	1,27	8	22	45	CLPW330/250	330	250	0,20	1,42	6	30	25	CLPW470/400	470	400	0,25	2,19	8	35	45	CLPW2200/50	2200	50	0,30	1,92	4	22	25	CLPW3300/50	3300	50	0,30	2,51	4	22	35	CLPW4700/35	4700	35	0,35	2,41	4	22	30	CLPW4700/50	4700	50	0,30	2,89	4	22	40	CLPW6800/35	6800	35	0,35	2,98	4	22	40	CLPW10000/50	10000	50	0,30	3,72	4	30	45	CLPW15000/35	15000	35	0,35	4,08	4	30	45
C = Capacitance, U_N = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), I_R = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C)

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.jamicon.com.tw

Inkl. moms

Kr. 24,75

v/10 – Kr. 18,56
v/25 – Kr. 15,47
v/100 – Kr. 12,38

Produktfiler

Datasheet

El-Capacitor 100µF/400V-P10-22x30

85-832

/ CS0100/400-P10

5 stk. på lager

Bestil nu for afsendelse mandag d. 5/10

Ved bestilling nu, får vi dem hjem fredag d. 16/10

Specifikationer

Kondensator-type radial
Produkt kondensator
Temperatur -25 – 85 °C
Spænding, max. 400 V
Tolerance ±20 %
Benafstand 1 cm
Højde 3 cm
Diameter 2.2 cm
Kapacitans 100 µF

Gruppe: C6415
JAMICON Electrolytic Capacitors
Series: LPW
Snap-In
Style: Bulk
Rated Voltage: 35...400V DC
Tolerance: 20%
Temperature Range: -40/-25...+85°C

CLPW100/400

Technical Specifications


Operating Temperature Range	35V, 50V:	-40...+85°C	250V, 400V:	-25...+85°C	Leakage Current (Peak Value after 5min.):	I_L£0,03xCxU_N or 3mA

	Part Nr.	C	U_N	tand	I_R	Z	D	L	[µF]	[V=]	[A]	[V/A]	[mm]	[mm]	CLPW47/400	47	400	0,25	0,43	8	22	25	CLPW100/400	100	400	0,25	0,68	8	22	30	CLPW220/400	220	400	0,25	1,27	8	22	45	CLPW330/250	330	250	0,20	1,42	6	30	25	CLPW470/400	470	400	0,25	2,19	8	35	45	CLPW2200/50	2200	50	0,30	1,92	4	22	25	CLPW3300/50	3300	50	0,30	2,51	4	22	35	CLPW4700/35	4700	35	0,35	2,41	4	22	30	CLPW4700/50	4700	50	0,30	2,89	4	22	40	CLPW6800/35	6800	35	0,35	2,98	4	22	40	CLPW10000/50	10000	50	0,30	3,72	4	30	45	CLPW15000/35	15000	35	0,35	4,08	4	30	45
C = Capacitance, U_N = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), I_R = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C)

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.jamicon.com.tw
