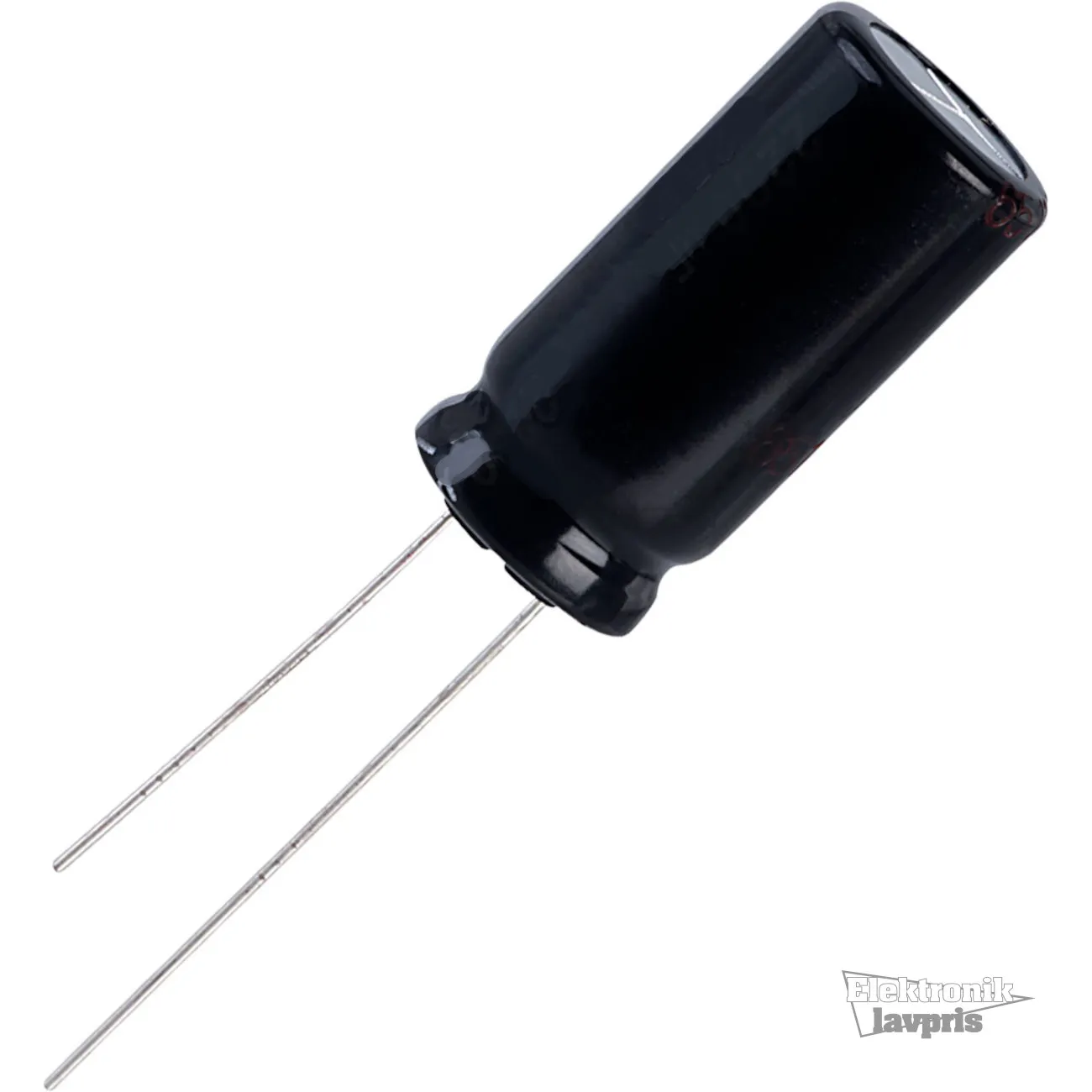

El-Capacitor 1000µF/50V 16x31,5 P7,5
Varenummer:
85-801
Varekode: CSHT1000/50-P7,5
Vægt: 8 g
45 stk.
på lager
Specifikationer
| Kondensator-type | radial |
|---|---|
| Produkt | kondensator |
| Spænding, max. | 50 V |
| Tolerance | ±20 % |
| Temperatur | -55 – 105 °C |
| Højde | 3.15 cm |
| Diameter | 1.6 cm |
| Benafstand | 7.5 mm |
| Kapacitans | 1 000 µF |
Gruppe: C6393
CAPXON Electrolytic Capacitors
Series: GL
Radial, Low Impedance, Low ESR
Style: Bulk
Rated Voltage: 50V DC
Tolerance: 20%
Temperature Range: -55...+105°C
Technical Specifications
 |
|
| Voltage Rating: | 50V DC |
| Rated Voltage: | 63V |
| Surge Voltage, tan d (120Hz, 25°C): | 6,0 |
| Capacitance Tolerance: | ±20% |
| Temperature Range: | -55...+105°C |
| Leakage Current, Max.: | 0,01xCxUN or 4µA |
| Load Life: | 5000h (2000h at 8min.) |
|
|
| Part Nr. | C | RESR | IR | D | L | P | d |
| [µF] | [Ohm] | [mA] | [mm] | [mm] | [mm] | [mm] | |
| CSN0010/50 | 10 | 2 | 100 | 5,0 | 11 | 2,0 | 0,5 |
| CSN0022/50 | 22 | 1,3 | 135 | 6,3 | 11 | 2,5 | 0,5 |
| CSN0047/50 | 47 | 0,7 | 285 | 8,0 | 12 | 3,5 | 0,5 |
| CSN0100/50 | 100 | 0,17 | 475 | 8,0 | 20 | 3,5 | 0,5 |
| CSN0220/50 | 220 | 0,076 | 810 | 10,0 | 25 | 5,0 | 0,6 |
| CSN0470/50 | 470 | 0,055 | 1490 | 13,0 | 25 | 5,0 | 0,6 |
| CSN1000/50 | 1000 | 0,036 | 1880 | 16,0 | 31,5 | 7,5 | 0,8 |
| C = Rated Capacitance, RESR = Max. Impedance (20°C, 120 KHz), IR = Ripple Current (105°C, 100kHz), P = Pitch | |||||||
Inkl. moms
Kr. 15,63
- v/10 – Kr. 15,00
- v/50 – Kr. 13,75
- v/250 – Kr. 9,88
Produktfiler
El-Capacitor 1000µF/50V 16x31,5 P7,5
85-801
/ CSHT1000/50-P7,5
45 stk.
på lager
Specifikationer
- Kondensator-type radial
- Produkt kondensator
- Spænding, max. 50 V
- Tolerance ±20 %
- Temperatur -55 – 105 °C
- Højde 3.15 cm
- Diameter 1.6 cm
- Benafstand 7.5 mm
- Kapacitans 1 000 µF
Gruppe: C6393
CAPXON Electrolytic Capacitors
Series: GL
Radial, Low Impedance, Low ESR
Style: Bulk
Rated Voltage: 50V DC
Tolerance: 20%
Temperature Range: -55...+105°C
Technical Specifications
|
|
| Voltage Rating: | 50V DC |
| Rated Voltage: | 63V |
| Surge Voltage, tan d (120Hz, 25°C): | 6,0 |
| Capacitance Tolerance: | ±20% |
| Temperature Range: | -55...+105°C |
| Leakage Current, Max.: | 0,01xCxUN or 4µA |
| Load Life: | 5000h (2000h at 8min.) |
|
|
| Part Nr. | C | RESR | IR | D | L | P | d |
| [µF] | [Ohm] | [mA] | [mm] | [mm] | [mm] | [mm] | |
| CSN0010/50 | 10 | 2 | 100 | 5,0 | 11 | 2,0 | 0,5 |
| CSN0022/50 | 22 | 1,3 | 135 | 6,3 | 11 | 2,5 | 0,5 |
| CSN0047/50 | 47 | 0,7 | 285 | 8,0 | 12 | 3,5 | 0,5 |
| CSN0100/50 | 100 | 0,17 | 475 | 8,0 | 20 | 3,5 | 0,5 |
| CSN0220/50 | 220 | 0,076 | 810 | 10,0 | 25 | 5,0 | 0,6 |
| CSN0470/50 | 470 | 0,055 | 1490 | 13,0 | 25 | 5,0 | 0,6 |
| CSN1000/50 | 1000 | 0,036 | 1880 | 16,0 | 31,5 | 7,5 | 0,8 |
| C = Rated Capacitance, RESR = Max. Impedance (20°C, 120 KHz), IR = Ripple Current (105°C, 100kHz), P = Pitch | |||||||
