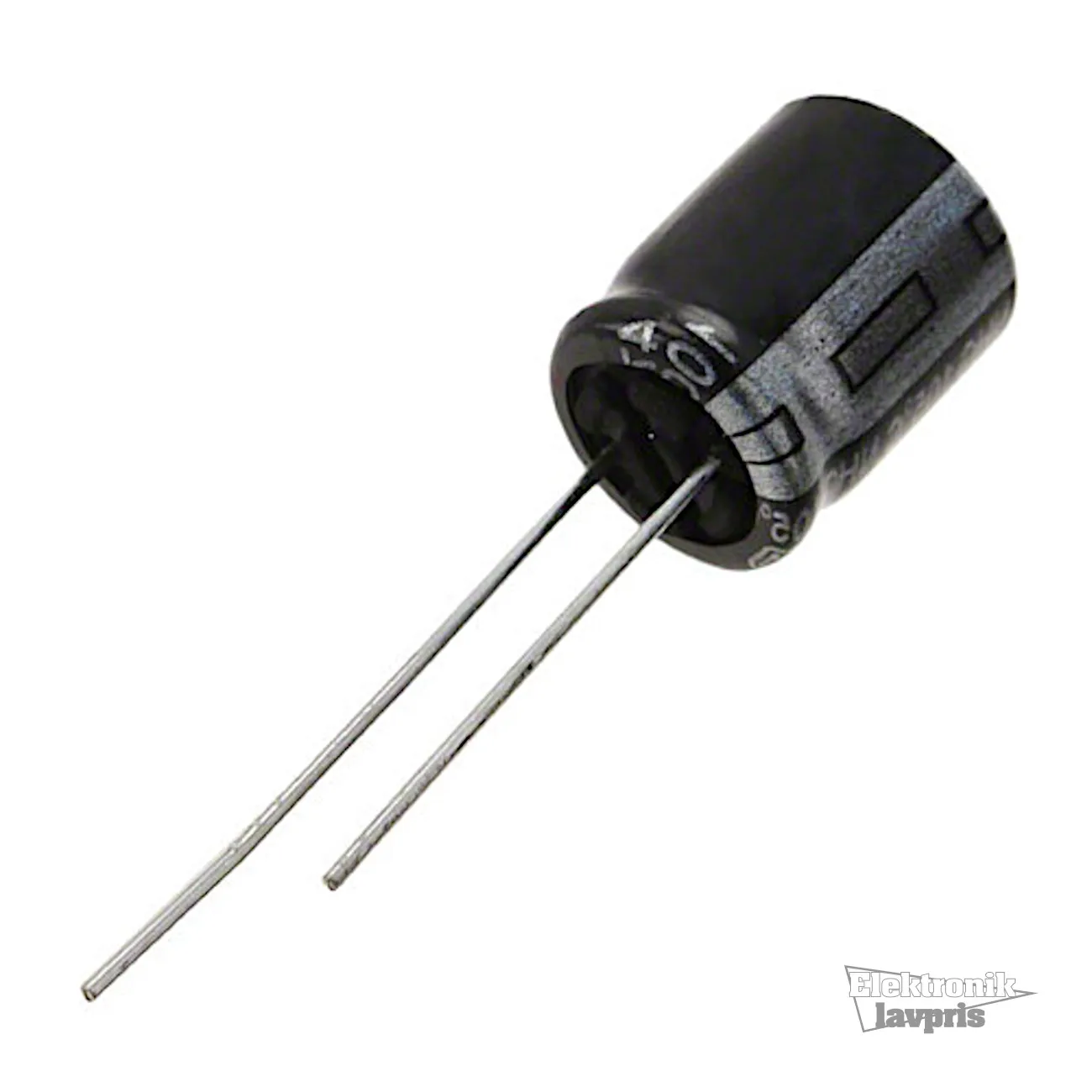

El-Capacitor 1000/50 16x25 P7,5 Bulk
Varenummer:
85-783
Varekode: CSHT1000/50
Vægt: 6 g
87 stk.
på lager
Specifikationer
| Kondensator-type | radial |
|---|---|
| Produkt | kondensator |
| Spænding, max. | 50 V |
| Tolerance | ±20 % |
| Temperatur | -40 – 105 °C |
| Højde | 2.5 cm |
| Diameter | 1.6 cm |
| Benafstand | 7.5 mm |
| Kapacitans | 1 000 µF |
Gruppe:
C6382
JAMICON, CAPXON Electrolytic Capacitors
Series: TK/KM
Radial
Style: Taped, Bulk
Rated Voltage: 50V DC
Tolerance: 20%
Temperature Range: -40...+105°C
Technical Specifications
| Part Nr. | C | IR | D | L | P/PG | c |
| [µF] | [mA] | [mm] | [mm] | [mm] | [mm] | |
| TKR010M1HD11M | 1 | 19 | 5 | 11 | 2 | 0,5 |
| TKR4R7M1HD11M | 4,7 | 36 | 5 | 11 | 2 | 0,5 |
| TKR100M1HD11M | 10 | 55 | 5 | 11 | 2 | 0,5 |
| TKR220M1HD11M | 22 | 80 | 5 | 11 | 2 | 0,5 |
| CSHT0022/50 | 22 | 55 | 5 | 11 | 2/5 | 0,5 |
| CSHT0033/50 | 33 | 80 | 6,3 | 11 | 2,5/5 | 0,5 |
| TKR470M1HE11M | 47 | 130 | 6,3 | 11 | 2,5 | 0,5 |
| CSHT0047/50 | 47 | 95 | 6,3 | 11 | 2,5/5 | 0,5 |
| TKR101M1HF11M | 100 | 220 | 8 | 11 | 3,5 | 0,6 |
| CSHT0100/50 | 100 | 160 | 8 | 11 | 3,5/5 | 0,6 |
| TKR221M1HG13M | 220 | 370 | 10 | 13 | 5 | 0,6 |
| CSHT0220/50 | 220 | 360 | 10 | 17 | 5/5 | 0,6 |
| CSHT0330/50 | 330 | 390 | 10 | 21 | 5/5 | 0,6 |
| TKR471M1HG21M | 470 | 660 | 10 | 21 | 5 | 0,6 |
| CSHT0470/50 | 470 | 540 | 10 | 21 | 5/5 | 0,6 |
| CSHT1000/50 | 1000 | 790 | 16 | 25 | 7,5/- | 0,8 |
| TKR332M1HL35M | 3300 | 2360 | 18 | 35 | 7,5 | 0,8 |
| C = Rated Capacitance, IR = Ripple Current (105°C, 120Hz), P/PG = Pitch/Pitch on Tape | ||||||
 |
||||||
Inkl. moms
Kr. 10,00
- v/10 – Kr. 8,00
- v/25 – Kr. 7,19
- v/100 – Kr. 6,12
- v/1000 – Kr. 3,75
Produktfiler
El-Capacitor 1000/50 16x25 P7,5 Bulk
85-783
/ CSHT1000/50
87 stk.
på lager
Specifikationer
- Kondensator-type radial
- Produkt kondensator
- Spænding, max. 50 V
- Tolerance ±20 %
- Temperatur -40 – 105 °C
- Højde 2.5 cm
- Diameter 1.6 cm
- Benafstand 7.5 mm
- Kapacitans 1 000 µF
Gruppe:
C6382
JAMICON, CAPXON Electrolytic Capacitors
Series: TK/KM
Radial
Style: Taped, Bulk
Rated Voltage: 50V DC
Tolerance: 20%
Temperature Range: -40...+105°C
Technical Specifications
| Part Nr. | C | IR | D | L | P/PG | c |
| [µF] | [mA] | [mm] | [mm] | [mm] | [mm] | |
| TKR010M1HD11M | 1 | 19 | 5 | 11 | 2 | 0,5 |
| TKR4R7M1HD11M | 4,7 | 36 | 5 | 11 | 2 | 0,5 |
| TKR100M1HD11M | 10 | 55 | 5 | 11 | 2 | 0,5 |
| TKR220M1HD11M | 22 | 80 | 5 | 11 | 2 | 0,5 |
| CSHT0022/50 | 22 | 55 | 5 | 11 | 2/5 | 0,5 |
| CSHT0033/50 | 33 | 80 | 6,3 | 11 | 2,5/5 | 0,5 |
| TKR470M1HE11M | 47 | 130 | 6,3 | 11 | 2,5 | 0,5 |
| CSHT0047/50 | 47 | 95 | 6,3 | 11 | 2,5/5 | 0,5 |
| TKR101M1HF11M | 100 | 220 | 8 | 11 | 3,5 | 0,6 |
| CSHT0100/50 | 100 | 160 | 8 | 11 | 3,5/5 | 0,6 |
| TKR221M1HG13M | 220 | 370 | 10 | 13 | 5 | 0,6 |
| CSHT0220/50 | 220 | 360 | 10 | 17 | 5/5 | 0,6 |
| CSHT0330/50 | 330 | 390 | 10 | 21 | 5/5 | 0,6 |
| TKR471M1HG21M | 470 | 660 | 10 | 21 | 5 | 0,6 |
| CSHT0470/50 | 470 | 540 | 10 | 21 | 5/5 | 0,6 |
| CSHT1000/50 | 1000 | 790 | 16 | 25 | 7,5/- | 0,8 |
| TKR332M1HL35M | 3300 | 2360 | 18 | 35 | 7,5 | 0,8 |
| C = Rated Capacitance, IR = Ripple Current (105°C, 120Hz), P/PG = Pitch/Pitch on Tape | ||||||
|
||||||
