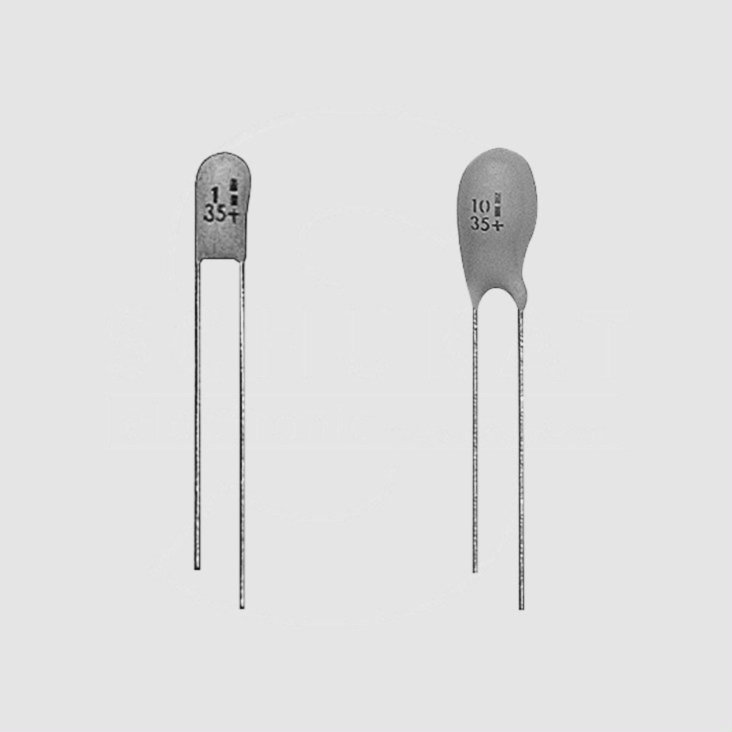

Tantalum Capacitor 3,3uF 35V P2,54
Varenummer:
85-636
Varekode: CTUF003,3GM1
Vægt: 0 g
961 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 1750 stk. kan skaffes tirsdag d. 10/11
Specifikationer
| Spænding, max. | 35 V |
|---|---|
| Benafstand | 2.54 mm |
| Kapacitans | 3.3 µF |
Features
| • Tantalum solid capacitors with yellow epoxy marked by laser • Flame-retardant material • Radial leads |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 35V DC |
| Temperature Range: | -55...+85°C1) |
| 1) Up to 125°C with decreased voltage, see table |
|
|
|
| Part Nr. | C | U125 | IL | P | DMax. | HMax. |
| [µF] | [V DC] | [µA] | [mm] | [mm] | [mm] | |
| CTL000.47G | 0,47 | 20 | 0,165 | 2,54 | 4,5 | 7,0 |
| CTL001G | 1,0 | 20 | 0,35 | 2,54 | 4,5 | 7,0 |
| CTL001.5G | 1,5 | 20 | 0,5 | 2,54 | 4,5 | 7,0 |
| CTL002.2G | 2,2 | 20 | 0,5 | 2,54 | 5,0 | 8,0 |
| CTL003.3G | 3,3 | 20 | 0,5 | 2,54 | 5,0 | 8,0 |
| CTL004.7G | 4,7 | 20 | 0,5 | 2,54 | 5,5 | 9,5 |
| CTL010G | 10 | 20 | 0,5 | 2,54 | 6,5 | 11,0 |
| CTL022G | 22 | 20 | 0,5 | 5,08 | 8,5 | 13,0 |
| C = Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = DC Leakage at 25°C, P = Pitch | ||||||
|
||||||
| Norms |
| IEC384-15-3, IECQ QC300201/US0003, SJ/T10856-96 |
|
Produktfiler
Tantalum Capacitor 3,3uF 35V P2,54
85-636
/ CTUF003,3GM1
961 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem tirsdag d. 10/11
Specifikationer
- Spænding, max. 35 V
- Benafstand 2.54 mm
- Kapacitans 3.3 µF
Features
| • Tantalum solid capacitors with yellow epoxy marked by laser • Flame-retardant material • Radial leads |
|
| Technical Specifications |
|
|
| Rated Voltage: | 35V DC |
| Temperature Range: | -55...+85°C1) |
| 1) Up to 125°C with decreased voltage, see table |
|
|
|
| Part Nr. | C | U125 | IL | P | DMax. | HMax. |
| [µF] | [V DC] | [µA] | [mm] | [mm] | [mm] | |
| CTL000.47G | 0,47 | 20 | 0,165 | 2,54 | 4,5 | 7,0 |
| CTL001G | 1,0 | 20 | 0,35 | 2,54 | 4,5 | 7,0 |
| CTL001.5G | 1,5 | 20 | 0,5 | 2,54 | 4,5 | 7,0 |
| CTL002.2G | 2,2 | 20 | 0,5 | 2,54 | 5,0 | 8,0 |
| CTL003.3G | 3,3 | 20 | 0,5 | 2,54 | 5,0 | 8,0 |
| CTL004.7G | 4,7 | 20 | 0,5 | 2,54 | 5,5 | 9,5 |
| CTL010G | 10 | 20 | 0,5 | 2,54 | 6,5 | 11,0 |
| CTL022G | 22 | 20 | 0,5 | 5,08 | 8,5 | 13,0 |
| C = Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = DC Leakage at 25°C, P = Pitch | ||||||
|
||||||
| Norms |
| IEC384-15-3, IECQ QC300201/US0003, SJ/T10856-96 |
|
Produktfiler
