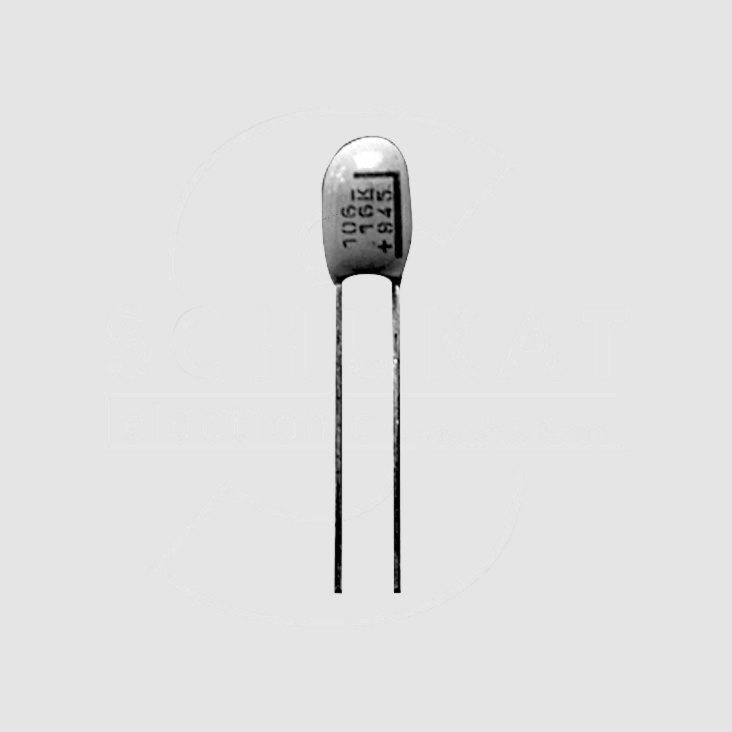

Tantalum Capacitor 2,2uF 16V P2,54

Varenummer: 85-611
Varekode: CTUF002,2DM1
Vægt: 0 g
11 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 3000 stk. kan skaffes tirsdag d. 10/11
Vis lignende produkter i kategorien "THT"
Specifikationer
Spænding, max. 16  V
Benafstand 2.54  mm
Kapacitans 2.2  µF
Features
• Tantalum solid capacitors with orange coloured epoxy
• Self-extinguishing
• Self-insulating cases which are resistant to shock and vibration
• Radial leads
Technical Specifications
    Surge Voltage: 1,3xUN Capacitance Tolerance: ±20% Temperature Range: -55°C...+85°C1)
1) Up to 125°C with decreased voltage, see table
                  Part Nr. C UN U125 IL tan d RM D H _-GURT [μF] [V=] [V=] [μA] [%] [mm] [mm] [mm] CTUF002,2D 2,2 16 10 0,5 5 2,54 4,5 7,1 CTUF003,3D 3,3 16 10 0,5 5 2,54 4,5 7,1 CTUF004,7D 4,7 16 10 0,6 5 2,54 4,5 7,6 CTUF010D 10,0 16 10 1,3 6 2,54 5,5 8,9 CTUF022D 22,0 16 10 2,6 6 2,54 6,0 9,9 CTUF002,2F 2,2 25 16 0,5 5 2,54 4,5 7,6 CTUF004,7F 4,7 25 16 0,9 5 2,54 5,0 8,4 CTUF010F 10,0 25 16 2,0 6 2,54 5,5 8,9 CTUF022F 22,0 25 16 4,4 6 2,54 7,6 11,9 CTUF001G 1,0 35 23 0,5 3 2,54 4,5 7,1 CTUF002,2G 2,2 35 23 0,6 5 2,54 5,0 8,4 CTUF004,7G 4,7 35 23 1,3 5 2,54 5,5 8,9 CTUF010G 10,0 35 23 2,8 6 2,54 6,3 10,2
C= Capacitance, UN = DC Voltage Rating, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch
        Tape Segment1) Reel   (= Minimum Order Quantity) For Orders of   [Pieces] [Pieces] CTUF002,2D-GURT 100 1500 CTUF003,3D-GURT 100 2500 CTUF004,7D-GURT 100 1500 CTUF010D-GURT 100 2000 CTUF022D-GURT 100 2500 CTUF002,2F-GURT 100 1500 CTUF004,7F-GURT 100 1500 CTUF010F-GURT 100 1000 CTUF022F-GURT 100 800 CTUF001G-GURT 100 2500 CTUF002,2G-GURT 100 1500 CTUF004,7G-GURT 100 1000 CTUF010G-GURT 100 1500
1) = Tape Segment without Leader Tape and Reel
Manufacturer
Kemet
http://www.kemet.com
Inkl. moms
Kr. 4,94
  • v/10 – Kr. 3,39
  • v/100 – Kr. 2,62
  • v/1000 – Kr. 1,84
