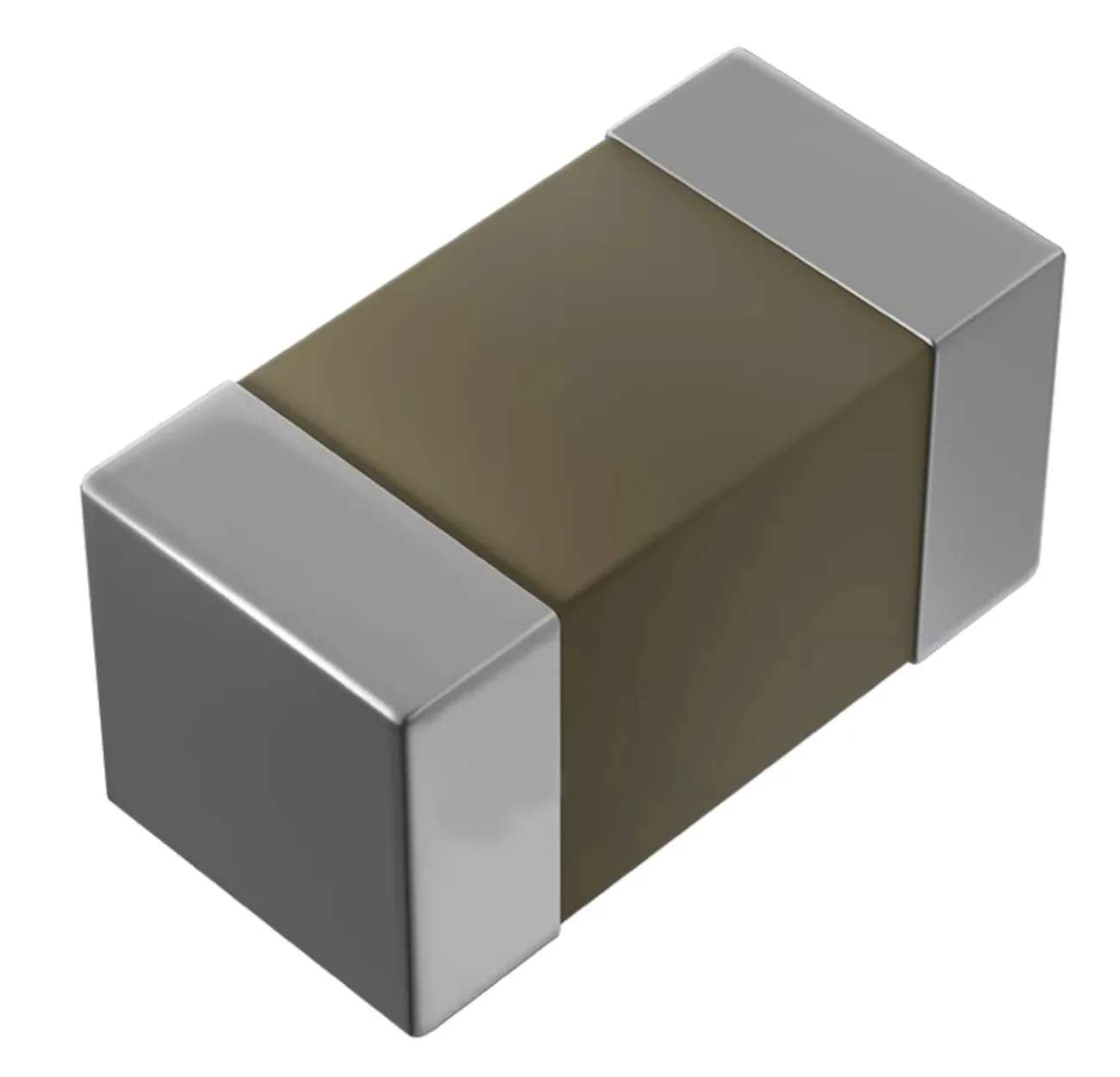

SMD MLC Capac.470nF 16V-20/80% Y5V 0603
Varenummer:
85-423
Varekode: CVNF470K0603Y
Vægt: 0 g
300 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Specifikationer
| Materiale | Y5V |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Tolerance | -20 / +80 % |
| Spænding, max. | 16 V |
| Komponenthus | 0603 |
| Kapacitans | 470 nF |
Gruppe:
C5471
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: Y5V
Housing: 0603
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: Y5V
Housing: 0603
| Technical Specifications |
 | |
| Rated Voltage (UN): | |
| 100nF: | 25V DC |
| 220nF, 470nF, 1µF: | 16V DC |
| 2,2µF: | 10V DC |
| Test Voltage: | 2,5xUN |
| Capacitance Tolerance: | -20...+80% |
| |
| Chip Dimensions |
| Housing | L | I | eMax./eMin. | bmMin./bmMax. |
| [mm] | [mm] | [mm] | [mm] | |
| 0603 | 1,6±0,10 | 0,8±0,07 | 0,87/0,73 | 0,65/0,25 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: orders of less than 4000 pieces: 500 pieces on segment tape without leader tape and reel; orders of 4000 pieces: 4000 pieces on super-8 reel. |
|
| Manufacturer |
| Darfon http://www.darfon.com |
|
Inkl. moms
v/100
Kr. 0,50
- v/500 – Kr. 0,20
- v/4000 – Kr. 0,10
SMD MLC Capac.470nF 16V-20/80% Y5V 0603
85-423
/ CVNF470K0603Y
300 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Kontakt os for at få oplyst leveringstid
Specifikationer
- Materiale Y5V
- Produkt kondensator
- Kondensator-type keramisk
- Tolerance -20 / +80 %
- Spænding, max. 16 V
- Komponenthus 0603
- Kapacitans 470 nF
Gruppe:
C5471
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: Y5V
Housing: 0603
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: Y5V
Housing: 0603
| Technical Specifications |
| |
| Rated Voltage (UN): | |
| 100nF: | 25V DC |
| 220nF, 470nF, 1µF: | 16V DC |
| 2,2µF: | 10V DC |
| Test Voltage: | 2,5xUN |
| Capacitance Tolerance: | -20...+80% |
| |
| Chip Dimensions |
| Housing | L | I | eMax./eMin. | bmMin./bmMax. |
| [mm] | [mm] | [mm] | [mm] | |
| 0603 | 1,6±0,10 | 0,8±0,07 | 0,87/0,73 | 0,65/0,25 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: orders of less than 4000 pieces: 500 pieces on segment tape without leader tape and reel; orders of 4000 pieces: 4000 pieces on super-8 reel. |
|
| Manufacturer |
| Darfon http://www.darfon.com |
|
