Please see general product information "C5141 to C5147" before product group C5141.
|
 |
|
|
|
Rated Voltage:
|
500V
|
Insulation Resistance Type 1:
|
³10MW
|
Insulation Resistance Type 2
|
20nF:
|
³10MW
|
20nFC100nF:
|
³7,5MW
|
Insulation Resistance Type 3
|
16V:
|
>100MW
|
25V, 50V:
|
>1,0MW
|
|
|
|
|
|
|
|
|
Part Nr.
|
C
|
C
|
Tolerance
|
Type
|
Mat.
|
D
|
| |
[nF]
|
[pF]
|
[%]
|
|
|
[mm]
|
| KEPF003,9-500V |
0,0039
|
3,9
|
±0,25pF
|
1
|
NPO
|
6,5
|
| KEPF005,6-500V |
0,0056
|
5,6
|
±0,25pF
|
1
|
NPO
|
6,5
|
| KEPF010-500V |
0,01
|
10
|
±5
|
1
|
NPO
|
6,5
|
| KEPF022-500V |
0,022
|
22
|
±5
|
1
|
NPO
|
5,1
|
| KEPF027-500V |
0,027
|
27
|
±10
|
1
|
SL
|
6,5
|
| KEPF033-500V |
0,033
|
33
|
±10
|
1
|
SL
|
6,5
|
| KEPF047-500V |
0,047
|
47
|
±10
|
1
|
SL
|
6,5
|
| KEPF068-500V |
0,068
|
68
|
±10
|
1
|
SL
|
6,5
|
| KEPF100-500V |
0,1
|
100
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF150-500V |
0,15
|
150
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF180-500V |
0,18
|
180
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF220-500V |
0,22
|
220
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF330-500V |
0,33
|
330
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF470-500V |
0,47
|
470
|
±10
|
2
|
Y5P
|
6,5
|
| KEPF820-500V |
0,82
|
820
|
±10
|
2
|
Y5P
|
6,5
|
| KENF001-500V |
1,0
|
1000
|
±20
|
2
|
Z5U
|
6,5
|
| KENF001,5-500V |
1,5
|
1500
|
±10
|
3
|
Y5P
|
7,1
|
| KENF002,2-500V |
2,2
|
2200
|
±20
|
2
|
Z5U
|
7,1
|
| KENF003,3-500V |
3,3
|
3300
|
±20
|
2
|
Z5U
|
7,1
|

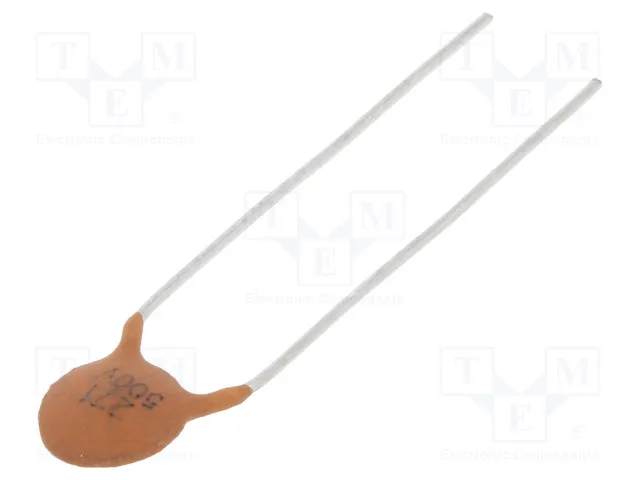

| KENF004,7-500V |
4,7
|
4700
|
±20
|
2
|
Z5U
|
7,1
|
| KENF010-500V |
10,0
|
10000
|
-20/+80
|
2
|
Z5V
|
8,1
|
C = Rated Capacitance, Mat. = Type of Ceramic, D = Disc Diameter
|
|
|
