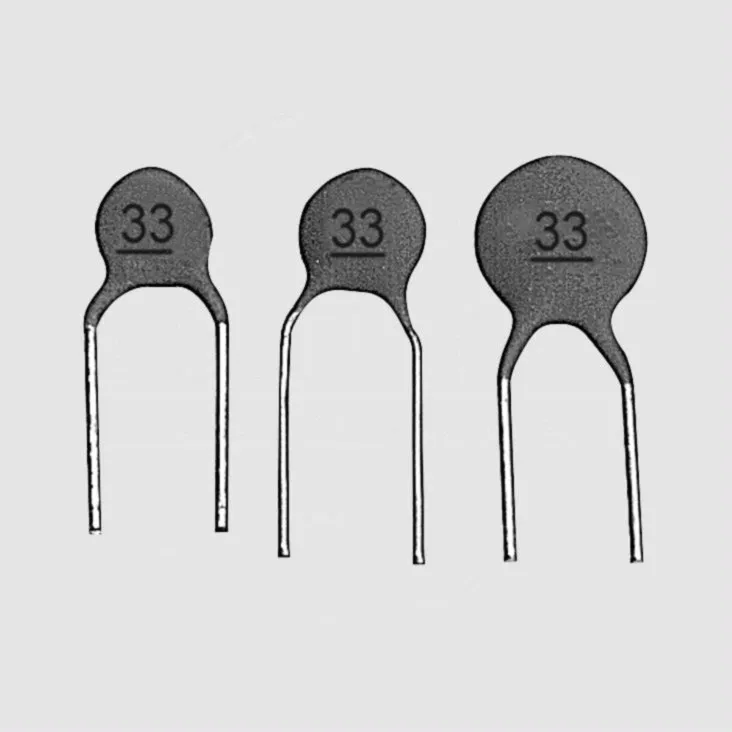

Cer Capacitor 15pF 100V P5,08 5% NP0
Varenummer:
85-204
Varekode: KEPF015
Vægt: 0 g
123 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
Yderligere 2200 stk. kan skaffes fredag d. 30/10
Specifikationer
| Materiale | NP0 |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Tolerance | ±5 % |
| Spænding, max. | 100 V |
| Kapacitans | 15 pF |
| Benafstand | 5.08 mm |
Technical Specifications
 |
|
| Rated Voltage: | 100V |
| Pitch: | 5,08mm ±1,0mm |
| Insulation Resistance, Min., Type 1: | 10MOhm |
| Insulation Resistance, Min., Type 2 | |
| 20nF: | 10MOhm |
| 20nF...100nF: | 7,5MOhm |
| Insulation Resistance, Min., Type 3 | |
| 16V: | 100MOhm |
| 25V, 50V: | 1,0MOhm |
|
|
Cer Capacitor 15pF 100V P5,08 5% NP0
85-204
/ KEPF015
123 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
Ved bestilling nu, får vi dem hjem fredag d. 30/10
Specifikationer
- Materiale NP0
- Produkt kondensator
- Kondensator-type keramisk
- Tolerance ±5 %
- Spænding, max. 100 V
- Kapacitans 15 pF
- Benafstand 5.08 mm
Technical Specifications
|
|
| Rated Voltage: | 100V |
| Pitch: | 5,08mm ±1,0mm |
| Insulation Resistance, Min., Type 1: | 10MOhm |
| Insulation Resistance, Min., Type 2 | |
| 20nF: | 10MOhm |
| 20nF...100nF: | 7,5MOhm |
| Insulation Resistance, Min., Type 3 | |
| 16V: | 100MOhm |
| 25V, 50V: | 1,0MOhm |
|
|
