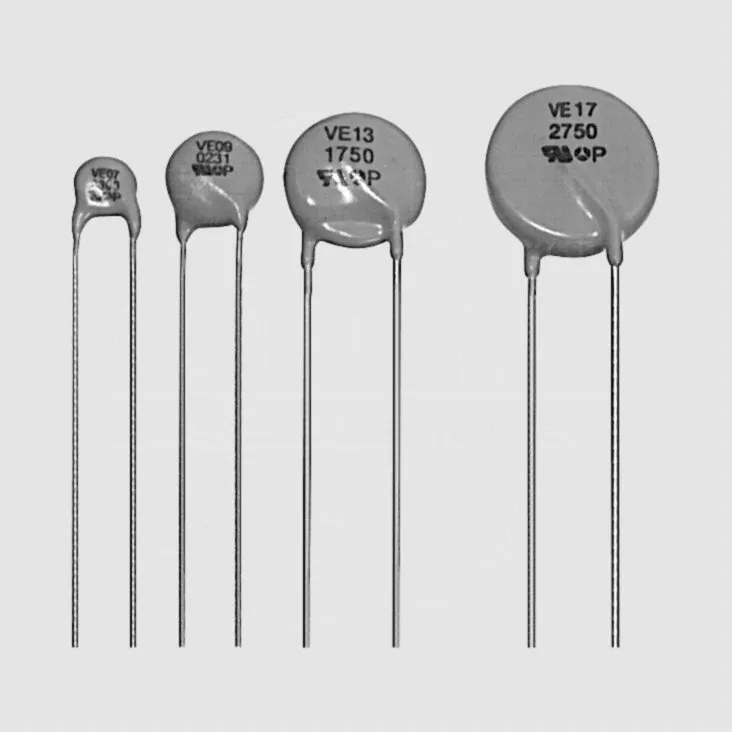

Varistor 14V 22V 250A
Varenummer:
85-152
Varekode: VE13M00140K
Vægt: 1 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Max. Surge Current | 250 A |
|---|---|
| Varistor Voltage at 1 mA | 22 V |
| Max. Operating Voltage, AC | 14 V |
Gruppe:
C4250
AVX Metal Oxide Varistors
Series: VE
Style: Bulk
Pitch: 7,62mm
AVX Metal Oxide Varistors
Series: VE
Style: Bulk
Pitch: 7,62mm
| Technical Specifications |
 | |
| Material: | Zinc Oxide (ZnO) |
| Storage Temperature: | -40...+125C |
| Temperature Range, Max.: | +85C |
| Working Surface Temperature, Max.: | +115C |
| Voltage/Temperature Coefficient: | -0,05%/C |
| Test Voltage: | 2500V |
| Response Time: | 25ns |
| |
| Part Nr. | URMS | URMS | UV | US |
| [V AC] | [V DC] | [V] | [V] | |
| VE_140K | 14 | 18 | 22 | 43 |
| VE_251K | 250 | 320 | 390 | 645 |
| URMS = Max. Operating Voltage, UV = Varistor Voltage at 1mA, VDC, ±10%, US = Clamping Voltage 8/20µs | ||||
| ||||
| Part Nr. | IMax. | IP | E1 | E10 | C | NM | e |
| [A] | [A] | [J] | [J] | [pF] | [W] | [mm] | |
| VE13M00140K | 250 | 5,0 | 2,0 | 1,3 | 4000 | 0,05 | 4,3 |
| VE13M00251K | 1250 | 25,0 | 40,0 | 19,0 | 230 | 0,4 | 6,8 |
| * = VDE Certified, IMax. = Max. Permissible Peak Current (8/20 µs), 2 Surges, IP = Max. Clamping Current, E1 = Energy Absorption 10/1000 µs, 1 Surge, E10 = Energy Absorption 10/1000 µs, 10 Surges | |||||||
| |||||||
| Dimensions |
| Part Nr. | DMax. | HMax. | E | e | |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| VE13_ | 13 | 16 | 7,62±0,8 | 0,6+10%/-0,05 | s. o. |
| |||||
| Norms |
| CECC42.000/42.200 |
|
| Labelling |
| Part incl. disc diameter (e. g. VE17_), Operating Rated Voltage V AC in accordance with EIA-Code, Thomson-Logo, Approvals, LOT-number (only VE13_, VE17_) |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
| AVX http://www.avx.com |
|
