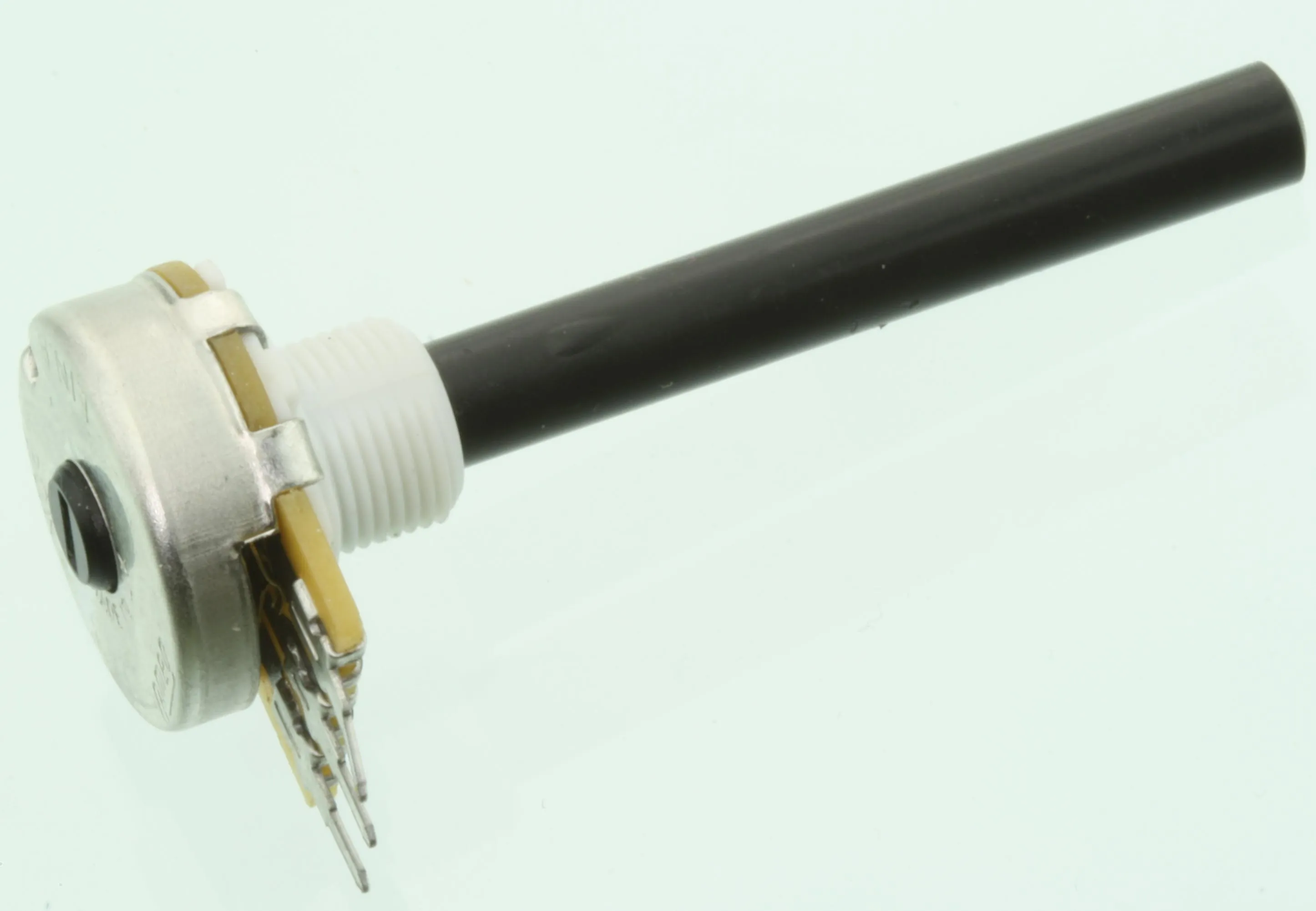

Potentiometer 20/6 Mono Lin 22K

Varenummer: 85-022
Varekode: P20MLK022
Vægt: 8 g
22 stk. på lager
Vis lignende produkter i kategorien "Lineær"
Electrical Specifications
Rated Power (TU=40°C):
 0,4W
Operating Voltage, Max.:
 500V DC
Insulation Voltage:
 1000V AC
Insulation Resistance
 5GW
Resistance Tolerance
100W...1MW:
 20%
>1MW:
 30%
Mechanical Specifications
Rotation Angle (Mechanical):
 300° ±5°
Operating Torque:
 0,4...1,5Ncm
Stop Strength, Max.:
 80Ncm
Weight, approx.:
 11g
Dimensions
Plastic Spindle
Dimensions (D):
 6,0mm
Length (L):
 50,0mm
Bush (C):
 8,0mm
Spindle (A):
 M10x0,75
PC Terminations:
 5/5 (10)mm
Manufacturer

http://www.piher-nacesa.com
Inkl. moms
Kr. 30,00
  • v/10 – Kr. 25,00
  • v/25 – Kr. 22,50
  • v/100 – Kr. 20,00
Produktfiler
