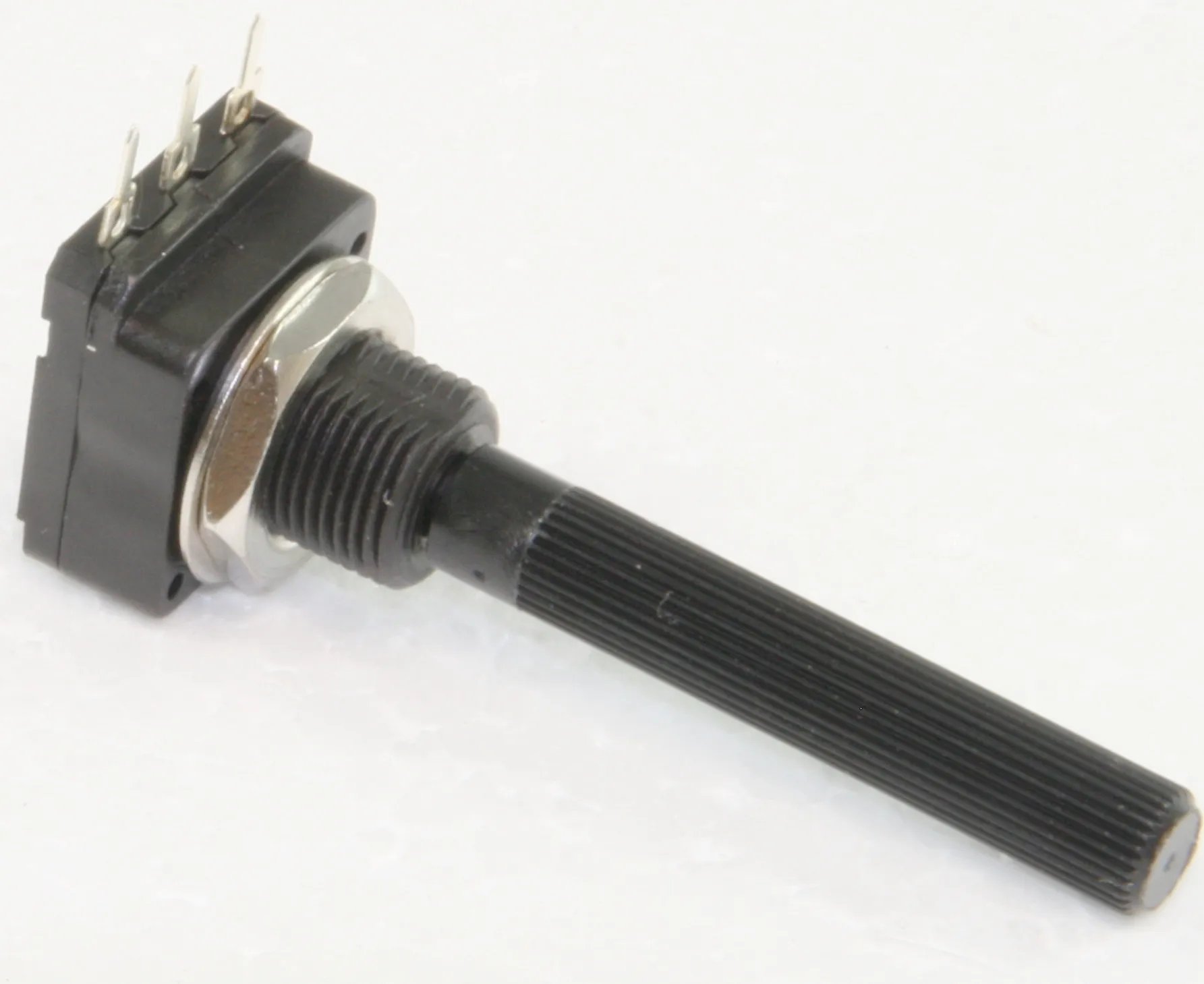

Potentiometer 16/6 Mono Lin 1M
Varenummer:
85-004
Varekode: PC16MLM001
Vægt: 10 g
26 stk.
på lager
Gruppe:
C3120
PIHER Carbon Potentiometers
Series: PC16ML
Linear (A)
Power: 0,25W
Shaft: Plastic, 6mm
Pitch: 5mm
Housing: 16mm
PIHER Carbon Potentiometers
Series: PC16ML
Linear (A)
Power: 0,25W
Shaft: Plastic, 6mm
Pitch: 5mm
Housing: 16mm
| Technical Specifications |
 | |
| Rated Power (TU = 40C): | 0,25W |
| Operating Voltage, Max.: | 250V DC |
| Residual Resistance: | £1x10-3RN |
| Resistance Tolerance | |
| 100W...1MW: | ±20% |
| >1MW: | ±30% |
| Rotation | |
| Mechanical: | 300 ±5 |
| Electrical: | 280 ±20 |
| Torque: | 0,5...1,5Ncm |
| Stop Torque: | >40Ncm |
| Temperature Range: | -25...+70C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.piher.net/ |
|
Inkl. moms
Kr. 17,54
- v/10 – Kr. 12,50
- v/20 – Kr. 11,25
- v/100 – Kr. 10,00
Produktfiler
Potentiometer 16/6 Mono Lin 1M
85-004
/ PC16MLM001
26 stk.
på lager
Gruppe:
C3120
PIHER Carbon Potentiometers
Series: PC16ML
Linear (A)
Power: 0,25W
Shaft: Plastic, 6mm
Pitch: 5mm
Housing: 16mm
PIHER Carbon Potentiometers
Series: PC16ML
Linear (A)
Power: 0,25W
Shaft: Plastic, 6mm
Pitch: 5mm
Housing: 16mm
| Technical Specifications |
| |
| Rated Power (TU = 40C): | 0,25W |
| Operating Voltage, Max.: | 250V DC |
| Residual Resistance: | £1x10-3RN |
| Resistance Tolerance | |
| 100W...1MW: | ±20% |
| >1MW: | ±30% |
| Rotation | |
| Mechanical: | 300 ±5 |
| Electrical: | 280 ±20 |
| Torque: | 0,5...1,5Ncm |
| Stop Torque: | >40Ncm |
| Temperature Range: | -25...+70C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| |
| http://www.piher.net/ |
|
Produktfiler
