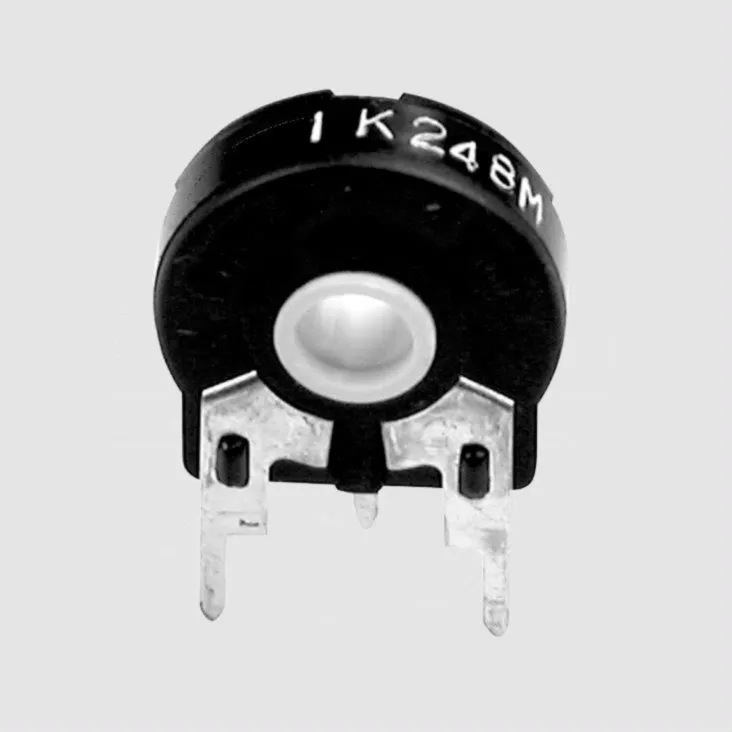

Trimmer Side Adjust P5/10 1K

Varenummer: 84-674
Varekode: PT15HK001
Vægt: 1 g
346 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere 525 stk. kan skaffes mandag d. 2/11
Vis lignende produkter i kategorien "PT15"
Gruppe: C2140
PIHER Carbon Trimmers
Series: PT15
Side Adjustment
Power: 0,25W
Shaft: Elongated Hole
Pitch: 5,0/10mm
Housing: 15mm
Features
High quality polyester substrate
Sealed enclosure, dust and colophony proof, protected against harmful influences
Double wiper, dual support
Excellent stability, multipurpose applications as variable film potentiometer
Resistant against cleaning agents, ultrasonic cleaning possible
Electrical Specifications
Taper:
Linear
Power Rating (TU = 40C):
0,25W
Operating Voltage, Max.:
250V DC
Resistance Tolerance
£1MW:
±20%
>1MW:
±30%
Temperature Range:
-25...+70C
Mechanical Specifications
Rotation
Mechanical:
265 ±5
Electrical:
250 ±20
Torque (3...5U/s):
0,5...2,5Ncm
Stop Torque:
10Ncm
Dimensions
Diameter:
15mm
Depth:
6mm
Note
Please see product group C2190 for shafts and thumbwheels.
Labelling
Resistance and production date code.
Terms of Delivery
Minimum order quantity: 1 PKU = 25 pieces
Manufacturer

http://www.piher.net/
Inkl. moms
Kr. 3,75
Kr. 6,68
  • v/10 – Kr. 5,34
  • v/25 – Kr. 4,01
  • v/100 – Kr. 3,12
