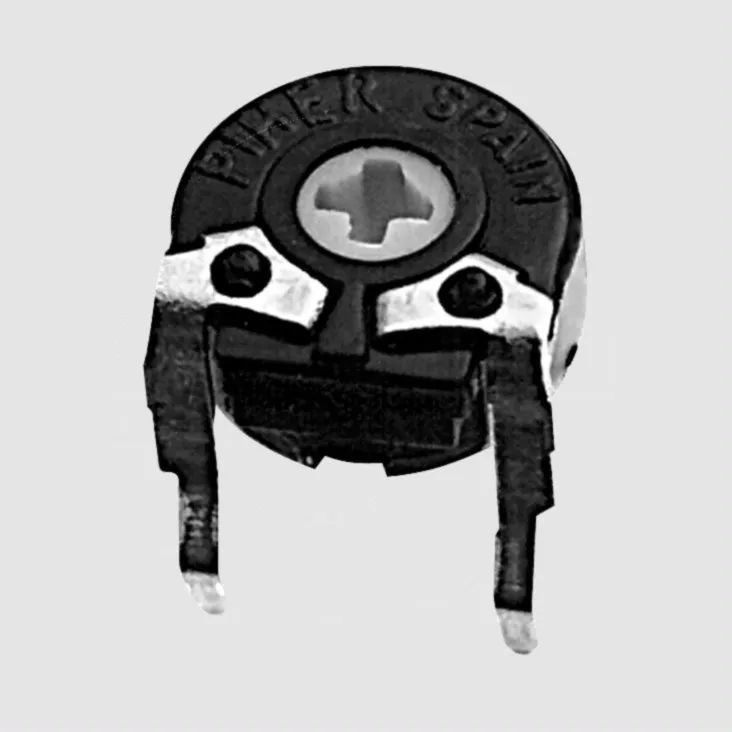

Trimmer Top Adjust P5/5 1M
Varenummer:
84-623
Varekode: PT6VM001
Vægt: 0 g
18 stk.
på lager
Gruppe:
C2115
PIHER Carbon Trimmers
Series: PT6
Top Adjustment
Power: 0,1W
Shaft: Arrow Slot
Pitch: 5,0/5,0mm
Housing: 6mm
PIHER Carbon Trimmers
Series: PT6
Top Adjustment
Power: 0,1W
Shaft: Arrow Slot
Pitch: 5,0/5,0mm
Housing: 6mm
| Features |
| Polyester substrate Sealed enclosure, dust and colophony proof, protected against harmful influences Double wiper, dual support Excellent stability, multipurpose applications as variable film potentiometer Wiper positioned at 50% or fully clockwise Resistant against cleaning agents, ultrasonic cleaning possible |
 |
| Electrical Specifications |
| |
| Taper: | Linear |
| Power Rating (TU = 40C): | 0,1W |
| Operating Voltage, Max.: | 100V DC |
| Resistance Tolerance | |
| £1MW: | ±20% |
| >1MW: | ±30% |
| Temperature Range: | -25...+70C |
| |
| Mechanical Specifications |
| |
| Rotation | |
| Mechanical: | 235 ±5 |
| Electrical: | 220 ±20 |
| Torque: | 0,2...2Ncm |
| Stop Torque: | 4Ncm |
| |
| Dimensions |
| |
| Diameter: | 6,3mm |
| Depth: | 3,3mm |
| |
| Labelling |
| Resistance and production date code |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
| http://www.piher.net/ |
|
Inkl. moms
Kr. 5,00
- v/10 – Kr. 3,75
- v/100 – Kr. 2,88
- v/500 – Kr. 2,50
