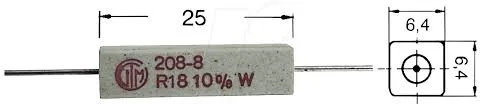

Resistor 5W 10% 2,2K

Varenummer: 84-546
Varekode: RCIK002,2
Vægt: 2 g
10 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere 3360 stk. kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "Trådviklet 5W"
Specifikationer
Effekt, max. 5  W
Modstand 2.2  kΩ
Komponenthus 208-8
Tolerance ±10  %
Features
• Wound on a glass fiber core with special direct terminals, temperature resistant
• Wound resistor embedded in a cement sealed ceramic tube
Technical Specifications
Resistance Value:
 Row E12, Reduced
Resistance Tolerance:
 ±10%
Power Rating (70°C):
 5W
Operating Voltage, Max.:
 Ö(P70xR)
Thermal Resistance:
 50K /W
Insulation Resistance:
 >104 MW
Insulation Voltage:
 2000Vrms
Temperature Coefficient:
 -80...+500x10-6/K
Temperature Range:
 -55...+350°C
Climatic Category:
 55/200/21
Failure Rate (Value Dependent):
 Approx. 100x10-9/h
Terminal Tensile Strength:
 50N
Solderability (Solderglobule Test, IEC68-2-20T):
 2,5s
Derating:
 Linear 70°C to 350°C (0W)
Labelling
Manufacturer logo, series, resistance value, tolerance
Approvals
Applicable: CECC40202-001, -005
Manufacturer

http://www.vitrohm.de
Inkl. moms
Kr. 6,88
  • v/10 – Kr. 5,62
  • v/100 – Kr. 4,25
  • v/500 – Kr. 3,38
