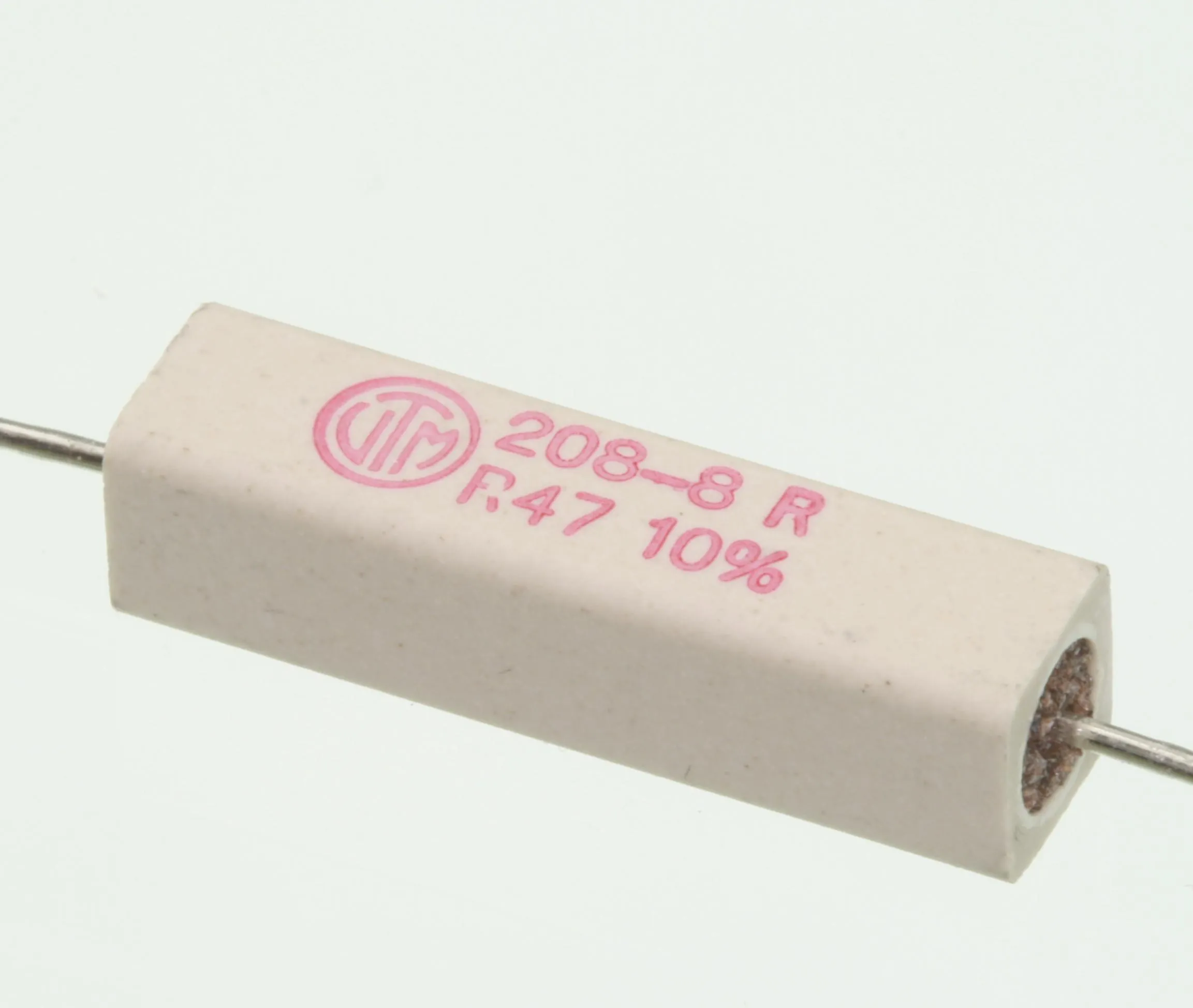

Resistor 5W 10% 0,47R
Varenummer:
84-515
Varekode: RCIE000,47
Vægt: 2 g
16 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 270 stk. kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "Trådviklet 5W"
Specifikationer
| Effekt, max. |
5
W
|
| Komponenthus |
208-8
|
| Tolerance |
±10
%
|
| Modstand |
0.47
Ω
|
• Wound on a glass fiber core with special direct terminals, temperature resistant
• Wound resistor embedded in a cement sealed ceramic tube
|
 |
|
|
|
Resistance Value:
|
Row E12, Reduced
|
Resistance Tolerance:
|
±10%
|
Power Rating (70°C):
|
5W
|
Operating Voltage, Max.:
|
Ö(P70xR)
|
Thermal Resistance:
|
50K /W
|
Insulation Resistance:
|
>104 MW
|
Insulation Voltage:
|
2000Vrms
|
Temperature Coefficient:
|
-80...+500x10-6/K
|
Temperature Range:
|
-55...+350°C
|
Climatic Category:
|
55/200/21
|
Failure Rate (Value Dependent):
|
Approx. 100x10-9/h
|
Terminal Tensile Strength:
|
50N
|
Solderability (Solderglobule Test, IEC68-2-20T):
|
2,5s
|
Derating:
|
Linear 70°C to 350°C (0W)
|
|
| Labelling |
Manufacturer logo, series, resistance value, tolerance
|
|
| Approvals |
Applicable: CECC40202-001, -005
|
|
|
