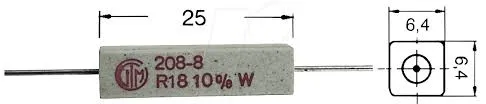

Resistor 5W 10% 0,1R
Varenummer:
84-508
Varekode: RCIE000,1
Vægt: 3 g
106 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 1380 stk. kan skaffes lørdag d. 31/10
Specifikationer
| Effekt, max. | 5 W |
|---|---|

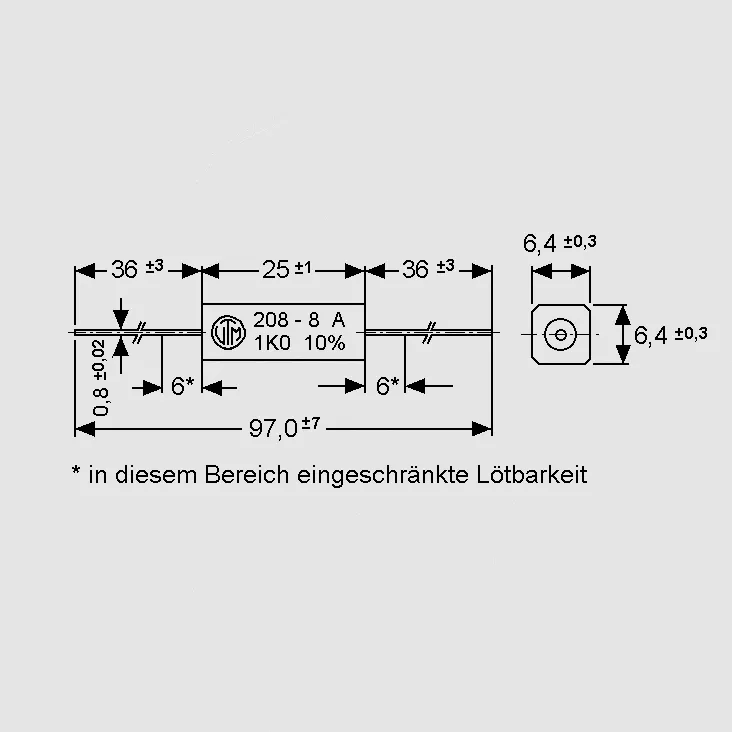

| Komponenthus | 208-8 |
| Tolerance | ±10 % |
| Modstand | 0.1 Ω |
Features
| • Wound on a glass fiber core with special direct terminals, temperature resistant • Wound resistor embedded in a cement sealed ceramic tube |
 |
| Technical Specifications |
|
|
| Resistance Tolerance: | ±10% |
| Power Rating (70°C): | 5W |
| Operating Voltage, Max.: | (PxR)1/2 |
| Thermal Resistance: | 50K/W |
| Insulation Resistance, Min.: | 104 MOhm |
| Insulation Voltage (1Min.): | 2000Vrms |
| Temperature Coefficient | |
| 0R075...0R3: | +400 ±50ppm/K |
| 0R33...470R: | 0 ±40ppm/K |
| 510R...15K: | 0 ±10ppm/K |
| Temperature Range: | -55...+350°C |
| Climatic Category: | 55/200/21 |
| Failure Rate (Value Dependent): | Approx. 100x10-9/h |
| Terminal Tensile Strength: | 50N |
| Solderability:1) | 2,5s |
| Derating: | Linear 70°C to 350°C (0W) |
| 1) Solderglobule Test, IEC 60068-2-20-T | |
|
|
| Norms |
| Applicable: CECC40202-001, -005 |
|
| Labelling |
| Manufacturer logo, series, resistance value, tolerance |
|
Produktfiler
