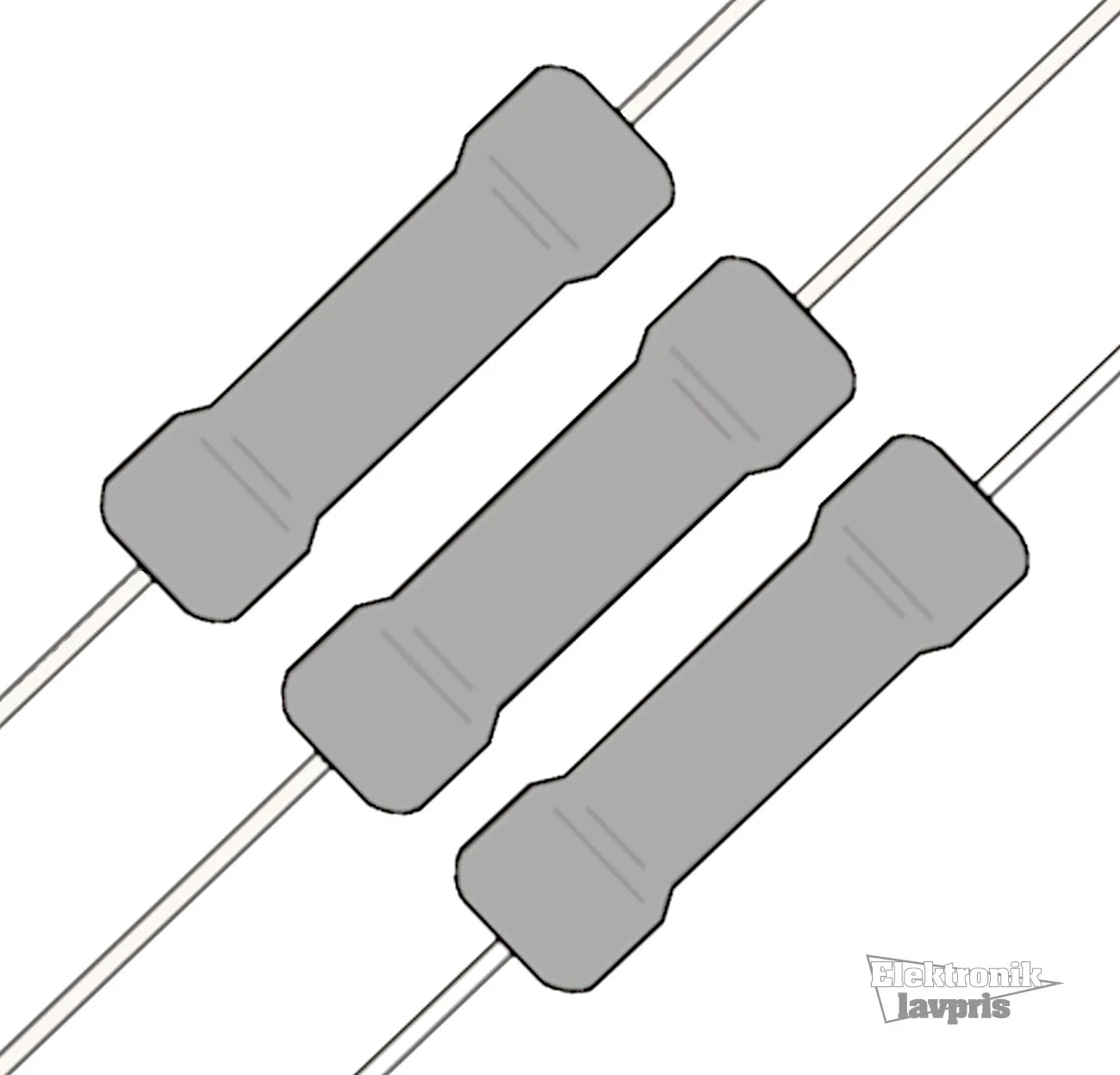

Modstand, Trådviklet, 0614 2,5W 5% 10R Taped
| Komponent-pakning | Taped |
|---|---|
| Tolerance | ±5 % |
| Effekt, max. | 2.5 W |
| Modstand | 10 Ω |
| Komponenthus | 0614 |
Wound on a ceramic core
Enamelled resistor core
Resistance Tolerance: ±5%
Power Rating (P70): 2,5W
Working Voltage, Max.: (PxR)1/2
Thermal Resistance: 65K/W
Insulation Voltage, Max.: 75Vrms
Temperature Coefficient: ±20x10-6/K
Temperature Range: -55...+350°C
Climatic Category: 55/200/56
Failure Rate (Value Dependent): Approx. 100x10-9/h
Terminal Tensile Strength: 50N
Solderability:1): 2,5s
Derating: Linear 70°C to 350°C (0W)
1)Solderglobule Test, IEC 60068-2-20-T
- v/10 – Kr. 4,50
- v/25 – Kr. 3,50
- v/100 – Kr. 2,50
- v/1000 – Kr. 2,00
