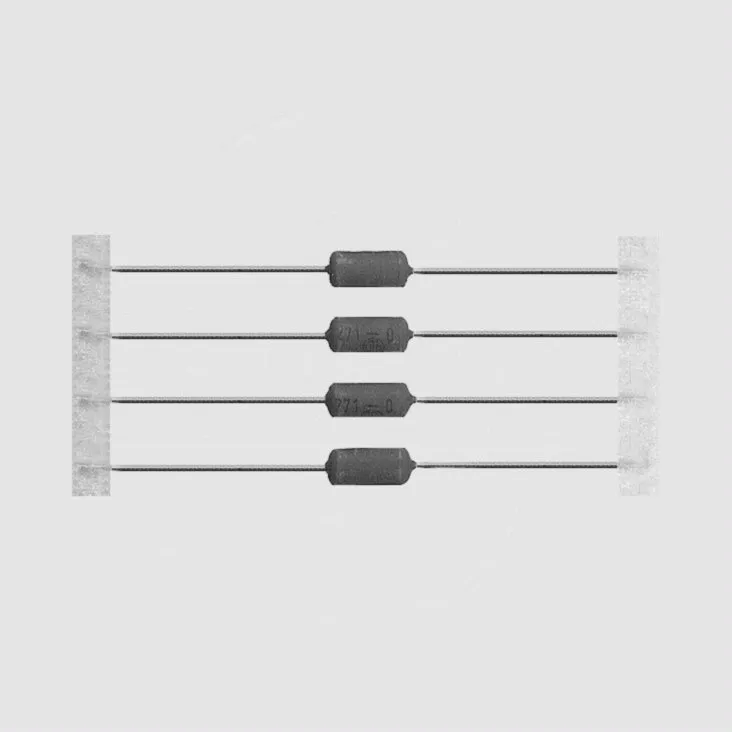

Resistor 0614 2,5W 5% 1,8R Taped

Varenummer: 84-364
Varekode: RDHE001,8
Vægt: 1 g
11 stk. på lager
Bestil nu for afsendelse mandag d. 19/10
Yderligere 4020 stk. kan skaffes fredag d. 30/10
Vis lignende produkter i kategorien "Trådviklet 2,5W"
Specifikationer
Komponent-pakning Taped
Tolerance ±5  %
Effekt, max. 2.5  W
Modstand 1.8  Ω
Komponenthus 0614
Features
• Wound on a ceramic core
• Enamelled resistor core
Technical Specifications
Resistance Value:
 Row E12, Reduced
Resistance Tolerance:
 ±5%
Power Rating (P70):
 2,5W
Working Voltage, Max.:
 Ö(P70xR)
Thermal Resistance:
 112K/W
Insulation Voltage, Max.:
 75Vrms
Temperature Coefficient:
 ±20x10-6/K
Temperature Range:
 -55...+350°C
Climatic Category:
 55/200/56
Failure Rate (Value Dependent):
 Approx. 10x10-9/h
Terminal Tensile Strength:
 50N
Solderability (Solderglobule Test, IEC68-2-20T):
 2,5s
Derating:
 Linear 70°C to 350°C (0W)
Norms
Manufacturer logo, series, resistance value, tolerance
Manufacturer

http://www.vitrohm.de
Inkl. moms
Kr. 6,75
  • v/10 – Kr. 4,50
  • v/25 – Kr. 3,50
  • v/100 – Kr. 2,50
  • v/1000 – Kr. 2,00
