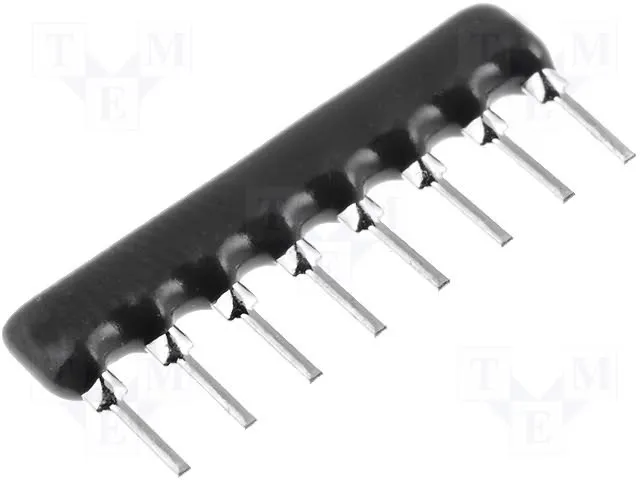

SIL-Resistor 7R/8P 47K
Varenummer:
84-278
Varekode: RN08PK047
Vægt: 0 g
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere kan skaffes onsdag d. 28/10
Specifikationer
| Tolerance | ±5 % |
|---|---|
| Modstand | 47 kΩ |
| Effekt, max. | 0.125 W |
Gruppe:
C1711
Thick Film Resistor Networks
Series: RN
Parallel Circuit
Power: 0,125W
Tolerance: 5%
Pitch: 2,54mm
Thick Film Resistor Networks
Series: RN
Parallel Circuit
Power: 0,125W
Tolerance: 5%
Pitch: 2,54mm
| Features |
| Compact size Excellent stability Single in-line |
 |
| Technical Specifications |
| |
| Power Rating (P70): | 0,125W |
| Tolerance: | ±5% |
| Working Voltage UMax.: | 100V |
| Temperature Range: | -55...+125C |
| Temperature Coefficient: | 100ppm |
| Soldering Regulations: | +230C/5s |
| |
| Dimensions |
| Part Nr. | Number of | Number of | LMax. |
| Resistors | Pins | [mm] | |
| RN06P_ | 5 | 6 | 15,3 |
| RN08P_ | 7 | 8 | 20,4 |
| RN09P_ | 8 | 9 | 22,1 |
| RN10P_ | 9 | 10 | 25,4 |
| |||
| Labelling |
| In accordance with EIA-code |
|
| Additional Products |
| Thick Film Resistor Networks with 4, 6, 10, 11 and 12 resistor elements available on request. Other series also available. Orders of 5000 pieces, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 2,04
- v/10 – Kr. 1,45
- v/50 – Kr. 0,87
- v/200 – Kr. 0,73
- v/1000 – Kr. 0,58
