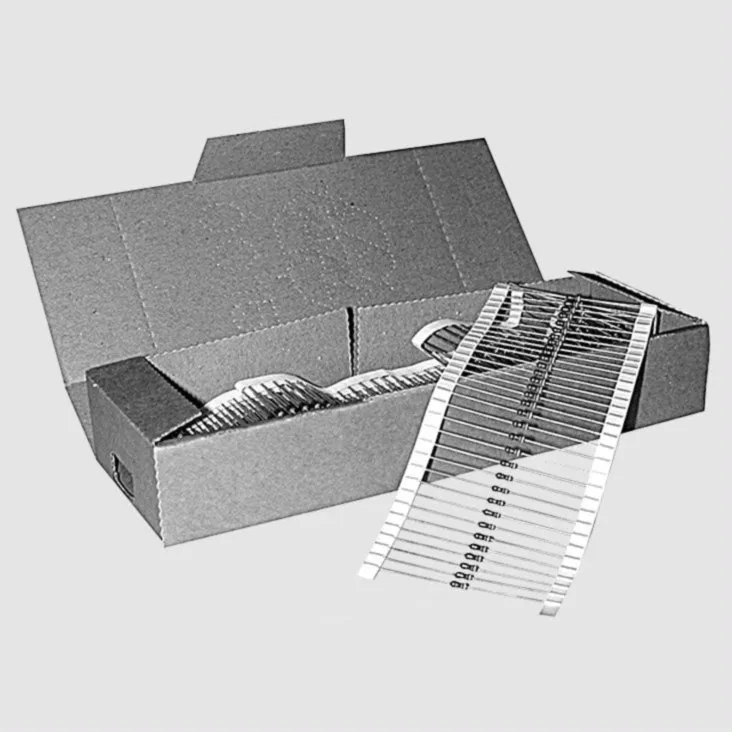

Resistor 0207 1W 5% 47K Taped
Varenummer:
83-876
Varekode: RWK2K047
Vægt: 0 g
90 stk.
på lager
Specifikationer
| Komponent-pakning | Taped |
|---|---|
| Tolerance | ±5 % |
| Modstand | 47 kΩ |
| Effekt, max. | 1 W |
| Komponenthus | 0207 |
Gruppe:
C1315
VISHAY Metal Oxide Resistors
Series: WK2
Style: Taped
Power: 1,0W
Tolerance: 5%
Housing: 0207
VISHAY Metal Oxide Resistors
Series: WK2
Style: Taped
Power: 1,0W
Tolerance: 5%
Housing: 0207
| Features |
| Rugged metal oxide film High power dissipation in small size High temperature coating, non-flammable |
 |
| Technical Specifications |
| |
| Resistance Tolerance: | ±5% |
| Power Rating (70C): | 1,0W |
| Operating Voltage.: | 500Vrms |
| Thermal Resistance.: | 140K/W |
| Insulation Resistance.: | 1000MW |
| Insulation Voltage (1 Min): | 500Vrms |
| Temperature Coefficient: | ±200ppm/K |
| Temperature Range: | -55...+200C |
| Climatic Category: | 55/200/56 |
| Failure Rate: | 1x10-8/h |
| Weight: | 0,2g |
| |
| Note |
| Please see product group C1110 for taped jumper wires and zero-ohm resistors. |
|
| Norms |
| CECC 40000, EN 140000 IEC 60115-1 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: Taped; Orders of 2000 pieces: Ammopack |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
