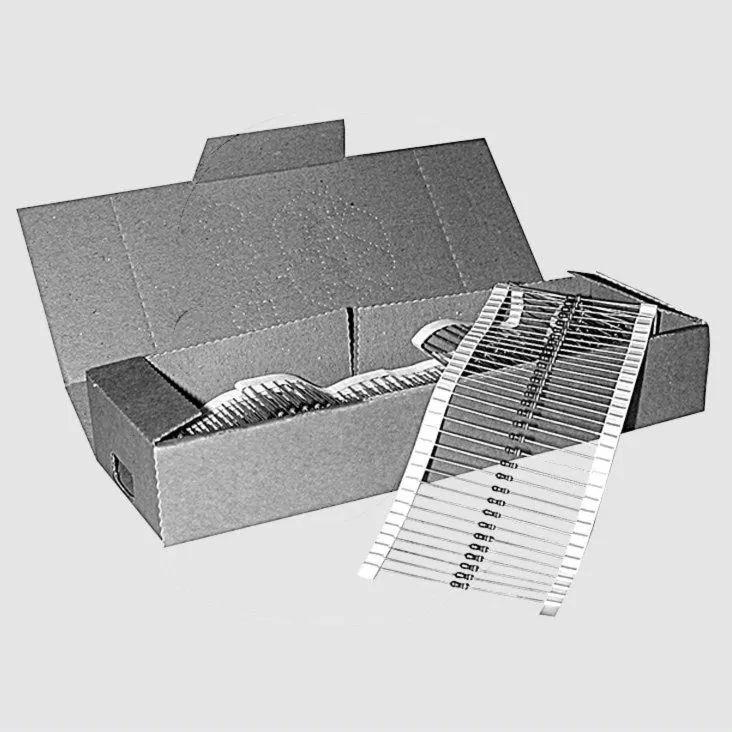

Resistor 0207 1W 5% 2K7 Taped

Varenummer: 83-871
Varekode: RWK2K002,7
Vægt: 0 g
35 stk. på lager
Vis lignende produkter i kategorien "Metalfilm 5% 1W"
Specifikationer
Komponent-pakning Taped
Tolerance ±5  %
Modstand 2.7  kΩ
Effekt, max. 1  W
Komponenthus 0207
Features
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable
Technical Specifications
Resistance Value:
 Row E12, Reduced
Resistance Tolerance:
 ±5%
Power Rating (70°C):
 1,0W
Operating Voltage.:
 500Vrms
Thermal Resistance.:
 140K/W
Insulation Resistance.:
 1000MW
Insulation Voltage (1 Min):
 500Vrms
Temperature Coefficient:
 ±200ppm/K
Temperature Range:
 -55...+250°C
Climatic Category:
 55/200/56
Failure Rate:
 1x10-8/h
Terminal Tensile Strength.:
 60N
Weight:
 0,2g
Norms
CECC 40000, EN 140000 IEC 60115-1
Manufacturer

http://www.vishay.com
Inkl. moms
Kr. 2,08
  • v/10 – Kr. 1,66
  • v/25 – Kr. 1,38
  • v/100 – Kr. 0,55
  • v/1000 – Kr. 0,25
