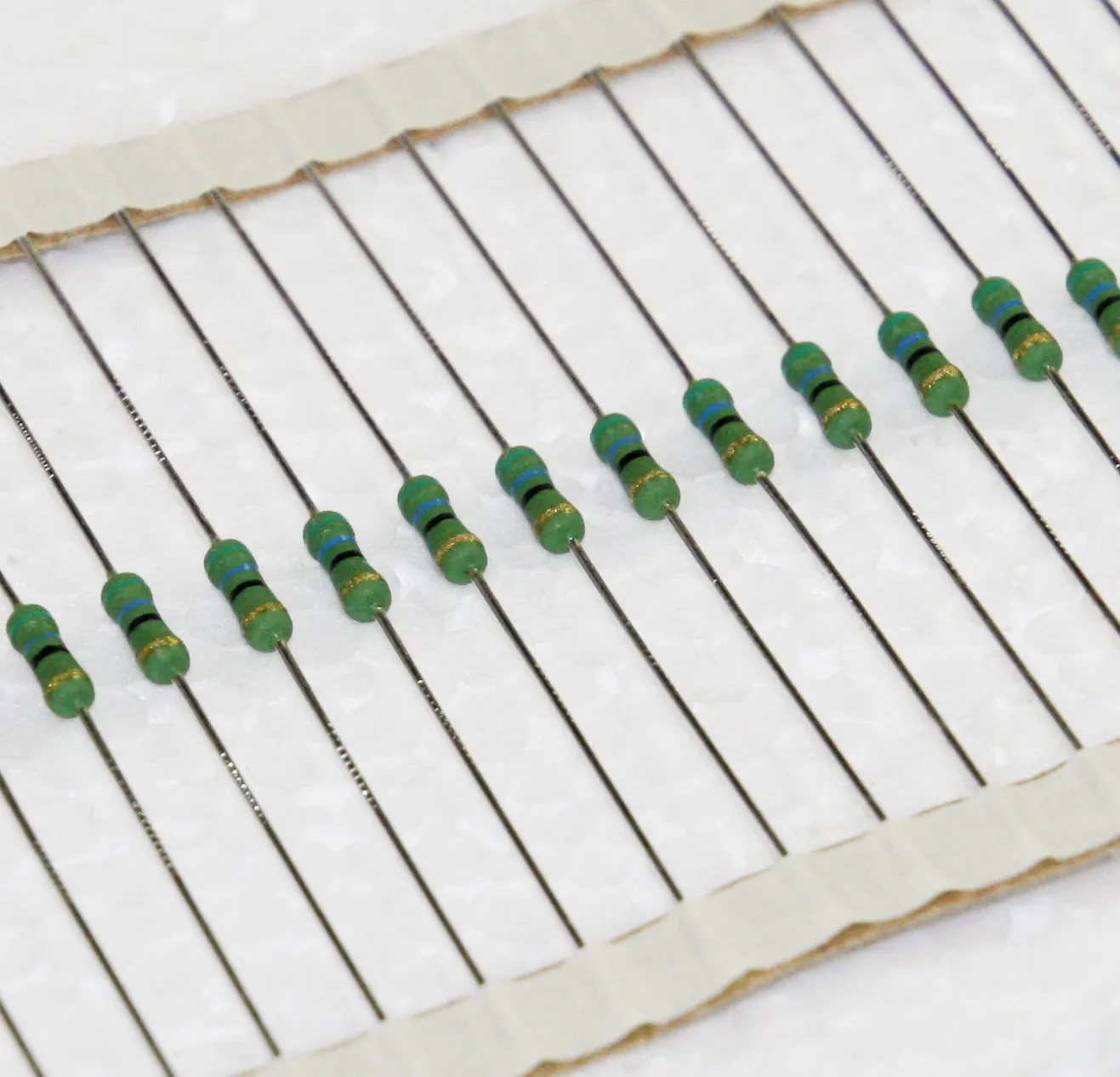

Resistor 0207 1W 5% 1K2 Taped
Varenummer:
83-867
Varekode: RWK2K001,2
Vægt: 0 g
96 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "Metalfilm 5% 1W"
Specifikationer
| Komponent-pakning |
Taped
|
| Tolerance |
±5
%
|
| Modstand |
1.2
kΩ
|
| Effekt, max. |
1
W
|
| Komponenthus |
0207
|
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable
|
 |
|
|
|
Resistance Value:
|
Row E12, Reduced
|
Resistance Tolerance:
|
±5%
|
Power Rating (70°C):
|
1,0W
|
Operating Voltage.:
|
500Vrms
|
Thermal Resistance.:
|
140K/W
|
Insulation Resistance.:
|
1000MW
|
Insulation Voltage (1 Min):
|
500Vrms
|
Temperature Coefficient:
|
±200ppm/K
|
Temperature Range:
|
-55...+250°C
|
Climatic Category:
|
55/200/56
|
Failure Rate:
|
1x10-8/h
|
Terminal Tensile Strength.:
|
60N
|
Weight:
|
0,2g
|
|
| Norms |
CECC 40000, EN 140000 IEC 60115-1
|
|
|
