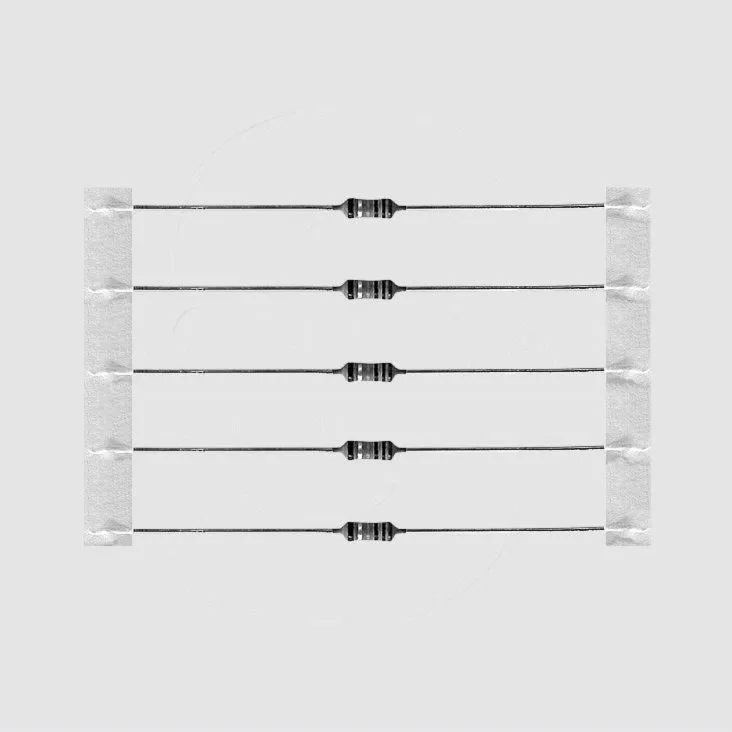

Resistor 0207 1W 5% 3,3K Taped

Varenummer: 83-823
Varekode: RMO1WK003,3
Vægt: 0 g
15 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere 10100 stk. kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "Metalfilm 5% 1W"
Specifikationer
Komponent-pakning Taped
Tolerance ±5  %
Modstand 3.3  kΩ
Effekt, max. 1  W
Komponenthus 0207
Features
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable
Technical Specifications
Resistance Value:
 Row E12
Resistance Tolerance:
 ±5%
Power Rating (70°C):
 1,0W
Operating Voltage, Max.:
 500Vrms
Thermal Resistance:
 140K/W
Insulation Resistance:
 >1000MW
Insulation Voltage (1 Min):
 500Vrms
Temperature Coefficient:
 ±200x10-6/K
Temperature Range:
 -55...+250°C
Climatic Category:
 55/200/56
Failure Rate:
 10x10-9/h
Terminal Tensile Strength:
 40N
Solderability (Solder Globule Test, IEC68-2-20T):
 2,5s
Derating:
 Linear 70°C to 250°C (0W)
Norms
DIN 44063, CECC 401-01-033 applicable
Labelling
DIN-IEC-colour code, 4 rings
Manufacturer

http://www.vitrohm.de
Inkl. moms
Kr. 2,59
  • v/10 – Kr. 2,07
  • v/25 – Kr. 1,73
  • v/100 – Kr. 0,69
  • v/1000 – Kr. 0,31
Produktfiler
