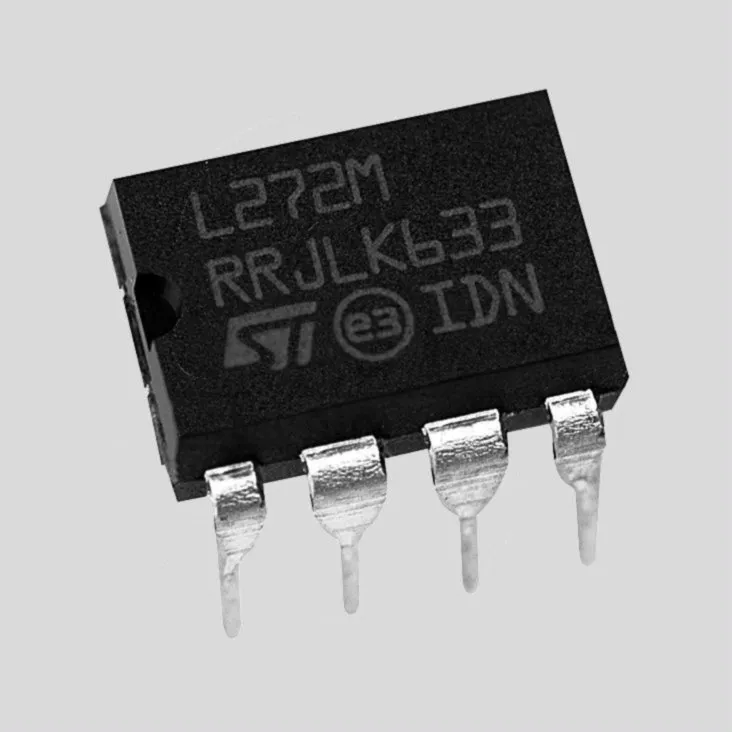

2xPower-Op-Amp +28V 1A 1V/us DIP-8
Varenummer:
81-559
Varekode: L272M
Vægt: 1 g
2 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Yderligere 20 stk. kan skaffes søndag d. 8/11
- IC, OP AMP, DUAL POWER, DIP8, 272
- Op Amp Type: Power
- No. of Amplifiers: 2
- Bandwidth: 350kHz
- Slew Rate: 1V/µs
- Supply Voltage Range: 4V to 28V
- Amplifier Case Style: DIP
- No. of Pins: 8
- Operating Temperature Range: -40°C to +85°C
- SVHC: No SVHC (19-Dec-2011)
- Amplifier Type: Power
- Base Number: 272
- Gain Bandwidth: 350kHz
- IC Generic Number: 272
- Input Offset Voltage Max: 60mV
- Logic Function Number: 272
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Package / Case: DIP
- Slew Rate: 1
- Supply Voltage + Nom: 28V
- Supply Voltage Max: 28V
- Supply Voltage Min: 4V
- Termination Type: Through Hole
Inkl. moms
Kr. 54,69
- v/10 – Kr. 40,62
- v/25 – Kr. 33,59
Produktfiler
2xPower-Op-Amp +28V 1A 1V/us DIP-8
81-559
/ L272M
2 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Ved bestilling nu, får vi dem hjem søndag d. 8/11
- IC, OP AMP, DUAL POWER, DIP8, 272
- Op Amp Type: Power
- No. of Amplifiers: 2
- Bandwidth: 350kHz
- Slew Rate: 1V/µs
- Supply Voltage Range: 4V to 28V
- Amplifier Case Style: DIP
- No. of Pins: 8
- Operating Temperature Range: -40°C to +85°C
- SVHC: No SVHC (19-Dec-2011)
- Amplifier Type: Power
- Base Number: 272
- Gain Bandwidth: 350kHz
- IC Generic Number: 272
- Input Offset Voltage Max: 60mV
- Logic Function Number: 272
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Package / Case: DIP
- Slew Rate: 1
- Supply Voltage + Nom: 28V
- Supply Voltage Max: 28V
- Supply Voltage Min: 4V
- Termination Type: Through Hole
