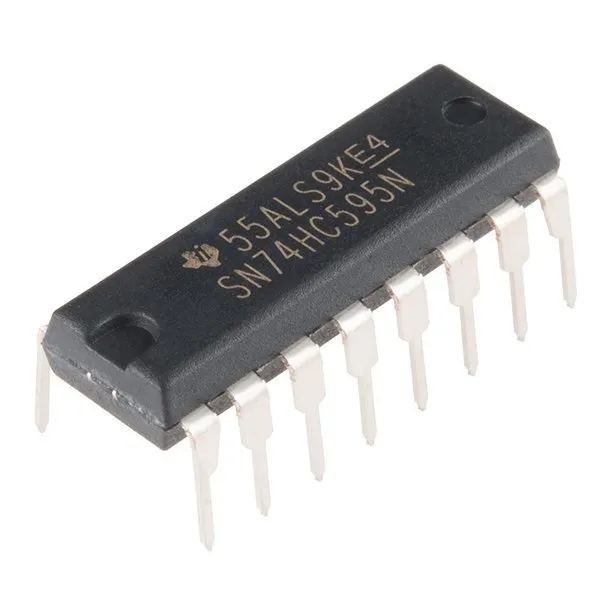

8-bit shift registers with output latches, three-state parallel outputs
Varenummer:
80-207
Varekode: 74HC595
Vægt: 1 g
65 stk.
på lager
- IC, 74HC CMOS, 74HC595, DIP16, 5V
- Shift Register Function: Serial to Parallel, Serial to Serial
- Logic Type: Shift Register
- No. of Elements: 1
- IC Output Type: Tri State
- Logic Case Style: DIP
- No. of Pins: 16
- Supply Voltage Range: 2V to 6V
- Operating Temperature Range: -40°C to +125°C
- SVHC: No SVHC (19-Dec-2011)
- Base Number: 74
- Device Marking: 74HC595
- Frequency: 100MHz
- IC Generic Number: 74HC595
- Input Current Max: 1µA
- Logic Function Number: 74595
- Logic IC Base Number: 74595
- Logic IC Family: HC
- Logic IC Function: 8bit Ser-In/Ser or Par-Out Latched Shift Register (3-State)
- No. of Gates: 1
- No. of Inputs: 1
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Package / Case: DIP
- Power Dissipation Ptot Max: 500mW
- Shift Register Function: Serial to Parallel, Serial to Serial
- Supply Voltage: 5V
- Supply Voltage Max: 6V
- Supply Voltage Min: 2V
- Termination Type: Through Hole
Inkl. moms
Kr. 15,75
- v/10 – Kr. 13,25
- v/25 – Kr. 12,00
- v/100 – Kr. 10,75
