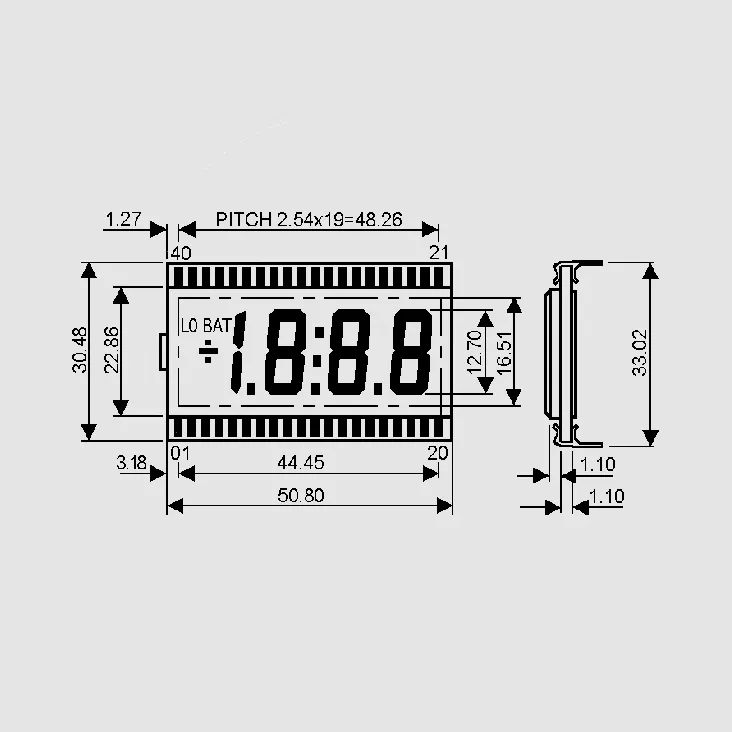

LCD-Display 3,5Dig + Annunc. 12,7mm

Varenummer: 79-772
Varekode: DE113RS-20/7,5
Vægt: 12 g
2 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere 1200 stk. kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "LCD"
Technical Specifications
• Driving frequency 30...100Hz
• Power consumption, typ. 1,0μA/cm2
• Response time, typ. 440ms
• Operating temperature range -20...+70°C
Part Nr.
 Dig/An
 Dig-Height
 GI-Size
 Driving
    [mm]
 [mm]

DE112_ 2
 12,7
 28x30
 Static
DE113_ 3,5+2
 12,7
 51x30
 Static
DE114_ 3,5+4
 12,7
 51x30
 Static
DE118_ 4+3
 8,0
 38x20
 Static
DE119_ 4
 12,7
 51x30
 Static
DE120_ 4
 17,8
 70x38
 Static
DE122_ 6
 12,7
 70x30
 Static
DE123_ 3
 8,9
 30x23
 Static
DE125_ 8
 12,7
 94x30
 Static
DE127_ 4
 8,9
 51x23
 Static
DE130_ 5
 17,8
 81x38
 Static
DE132_ 6
 17,8
 94x38
 Static
DE133_ 8+8
 9,0
 70x25
 1:3 Mux
DE156_ 6
 25,4
 137x46
 Static
DE158_ 4
 25,4
 94x46
 Static
DE301_ 8(14-Seg)
 7,0
 52x22
 1:4 Mux
Dig/An = Number of Digits/Annunciators, Dig-Height = Digit Height, GI-Size = Glass Size, Driving = Driving Method
Additional Products
We will also deliver custom-made LCD displays from the manufacturer Display Elektronik for orders of 500 resp. 1000 pieces upwards, forward orders possible, delivery time approx. 16 weeks.
You will find an inquiry form for custom-made LCD displays in this catalogue at the end of chapter B.
Manufacturer
http://www.display-elektronik.de
Inkl. moms
Kr. 57,00
  • v/5 – Kr. 42,75
  • v/25 – Kr. 35,62
  • v/100 – Kr. 21,38
