7Seg 13,2mm CA Red 800μcd
Varenummer:
79-726
Varekode: LTS546AP
Vægt: 3 g
11 stk.
på lager
Gruppe: W3364
LITEON 7-Segment LED-Displays
1 Digit

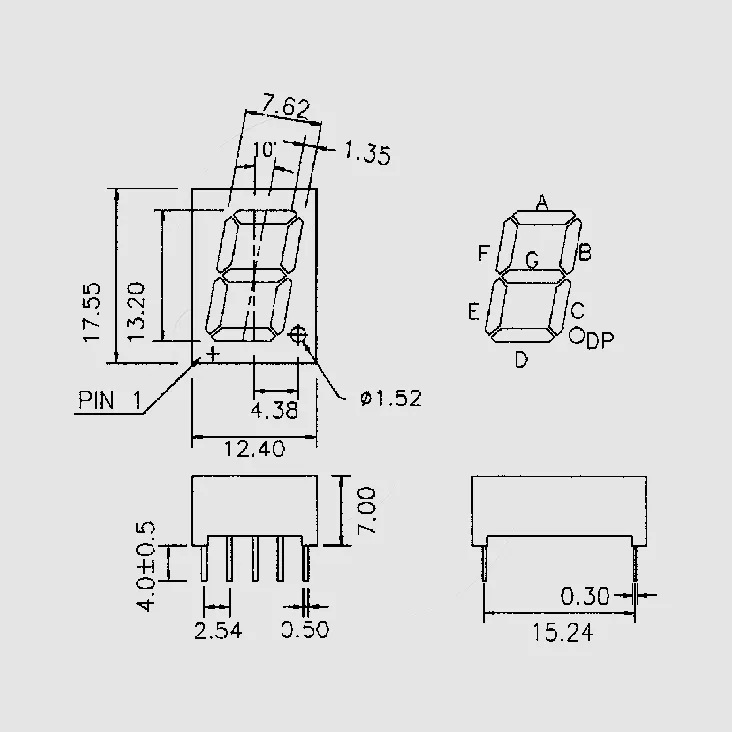

Digit height: 13,2mm
Dimensions: 17,55x12,4mm
Series: LTS546_, LTS547_
| Technical Specifications |
| Part Nr. | Devices | Colour | WL/IF | LI/IF | [nm/mA] | [µcd/mA] | LTS546AP | A | Red | 697/20 | 800/10 | LTS546AWC | A | Red | 660/20 | 700/1 | LTS546AHR | A | Red | 635/20 | 2000/10 | LTS546AE | A | Orange | 630/20 | 2000/10 | LTS546AG/GN | A | Green | 565/20 | 2200/10 | LTS547AP | C | Red | 697/20 | 800/10 | LTS547AWC | C | Red | 660/20 | 700/1 | LTS547AHR | C | Red | 635/20 | 2000/10 | LTS547AE | C | Orange | 630/20 | 2000/10 | LTS547AG | C | Green | 565/20 | 2200/10 | ||||||||
| A = Common Anode, C = Common Cathode, WL = Peak Emission Wavelength, LI = Typ. Luminous Intensity, IF = Forward Current | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
