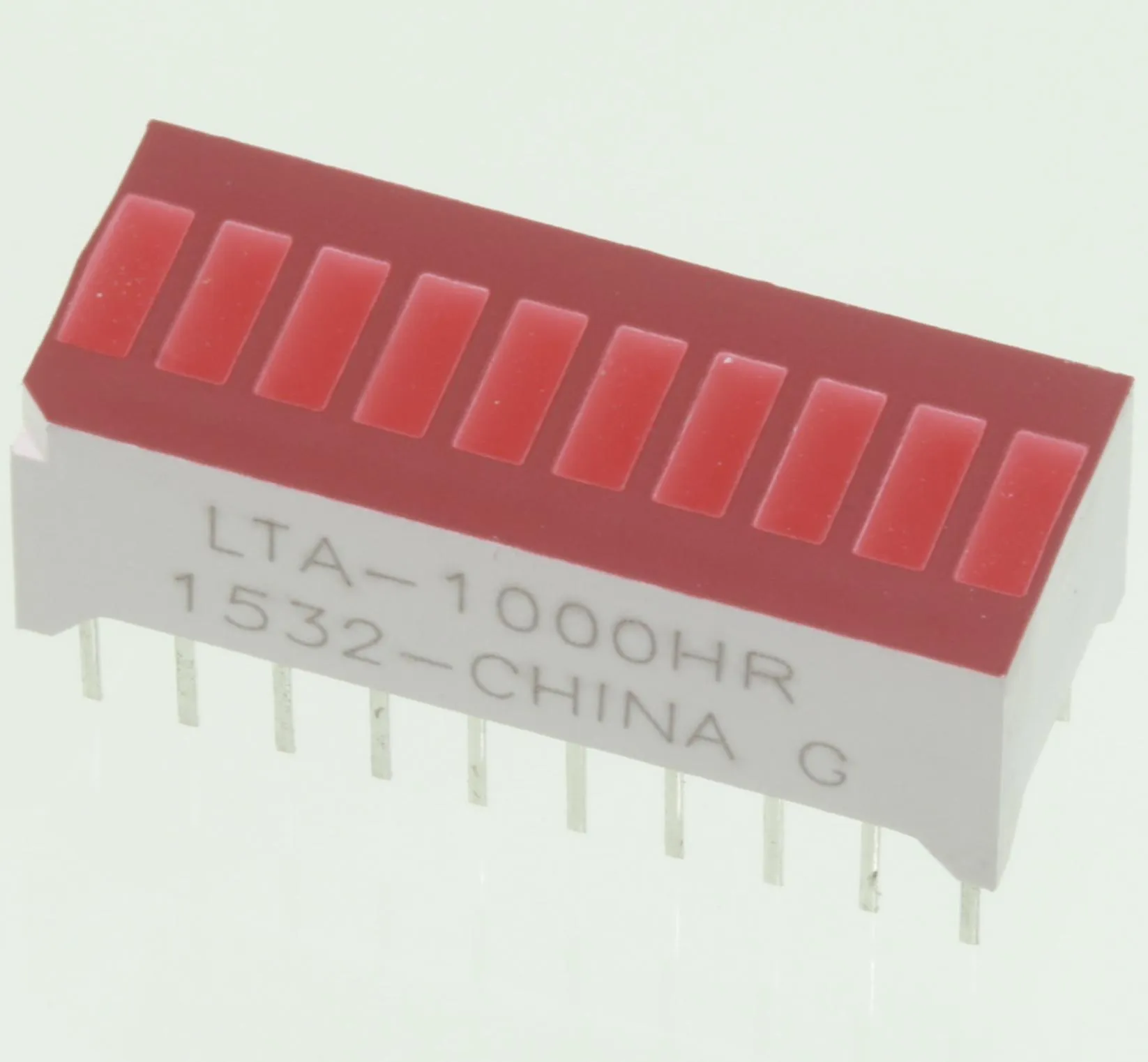

LED Bargraph Rød 2mcd DIP20
Varenummer:
79-376
Varekode: LTA1000HR
Vægt: 3 g
17 stk.
på lager
Gruppe: W3185
LITEON LED Bargraph Displays
Diffuse
Series: LTA1000_
Case: DIP/DIL
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF | [nm] | [°] | [mcd] | [mA] | [V] | LTA1000HR | Red | 635 | 100 | 2,0 | 10 | 2,0 | LTA1000Y | Yellow | 585 | 100 | 2,0 | 10 | 2,1 | LTA1000G | Green | 565 | 100 | 2,0 | 10 | 2,1 | |||||||||
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | |||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
Inkl. moms
Kr. 22,01
- v/10 – Kr. 16,51
- v/25 – Kr. 13,76
- v/100 – Kr. 11,01
Produktfiler
LED Bargraph Rød 2mcd DIP20
79-376
/ LTA1000HR
17 stk.
på lager
Gruppe: W3185
LITEON LED Bargraph Displays
Diffuse
Series: LTA1000_
Case: DIP/DIL
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF | [nm] | [°] | [mcd] | [mA] | [V] | LTA1000HR | Red | 635 | 100 | 2,0 | 10 | 2,0 | LTA1000Y | Yellow | 585 | 100 | 2,0 | 10 | 2,1 | LTA1000G | Green | 565 | 100 | 2,0 | 10 | 2,1 | |||||||||
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| |
| http://optoelectronics.liteon.com |
|
