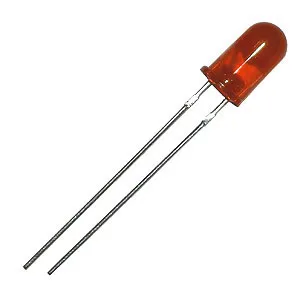

LED Diffuse Red 3,7mcd 50° 5mm
Varenummer:
79-279
Varekode: LED5RT2MA
Vægt: 0 g
103 stk.
på lager
Gruppe:
W1336
LITEON Light-Emitting Diodes
Diffuse
Low Power Consumption
Series: LED5_2MA
Case: 5mm
LITEON Light-Emitting Diodes
Diffuse
Low Power Consumption
Series: LED5_2MA
Case: 5mm
| Technical Specifications |
| LED_ | Colour | WL | VA | LI | @IF | UF |
| [nm] | [] | [mcd] | [mA] | [V] | ||
| 5RT2MA | Red | 635 | 50 | 3,7 | 2 | 1,8 |
| 5GE2MA | Yellow | 585 | 50 | 3,7 | 2 | 1,8 |
| 5GN2MA | Green | 565 | 50 | 3,7 | 2 | 2,0 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
