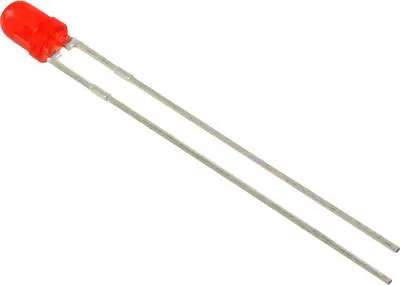

LED Diffuse Red 2,5mcd 60° 3mm
Varenummer:
79-242
Varekode: LED3RT2MA
Vægt: 0 g
503 stk.
på lager
Gruppe:
W1234
LITEON Light-Emitting Diodes
Diffuse
Low Power Consumption
Series: LED3_2MA
Case: 3mm
LITEON Light-Emitting Diodes
Diffuse
Low Power Consumption
Series: LED3_2MA
Case: 3mm
| Technical Specifications |
| LED_ | Colour | WL | VA | LI | @IF | UF |
| [nm] | [] | [mcd] | [mA] | [V] | ||
| 3RT2MA | Red | 635 | 60 | 2,5 | 2 | 1,7 |
| 3GE2MA | Yellow | 585 | 60 | 1,1 | 2 | 2,0 |
| 3GN2MA | Green | 565 | 60 | 1,1 | 2 | 2,0 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
Inkl. moms
Kr. 2,16
- v/10 – Kr. 1,72
- v/25 – Kr. 1,29
- v/100 – Kr. 0,86
- v/1000 – Kr. 0,43
