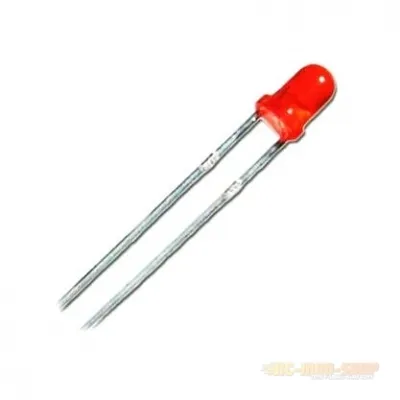

LED Diffuse Red 4,4mcd 60° 3mm
Varenummer:
79-234
Varekode: LTL4211N
Vægt: 0 g
15 stk.
på lager
Gruppe:
W1232
LITEON Light-Emitting Diodes
Diffuse
High Efficiency
Series: LTL42_1N
Case: 3mm
W1232
LITEON Light-Emitting Diodes
Diffuse
High Efficiency
Series: LTL42_1N
Case: 3mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| LTL4211N | Red | 697 | 60 | 4,4 | 10 | 2,1 |
| LTL4221N | Red | 635 | 60 | 8,7 | 10 | 2,0 |
| LTL4251N | Yellow | 585 | 60 | 5,6 | 10 | 2,1 |
| LTL4231N | Green | 565 | 60 | 12,6 | 10 | 2,1 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
Inkl. moms
Kr. 2,35
- v/10 – Kr. 1,88
- v/25 – Kr. 1,41
- v/100 – Kr. 0,94
- v/1000 – Kr. 0,47
