Solid State Relay in 3-32vdc udg.24- 480vac A SIP4
Varenummer:
79-215
Varekode: WGA8-12D05R
Vægt: 40 g
0 stk.
på lager
Gruppe:
X8721

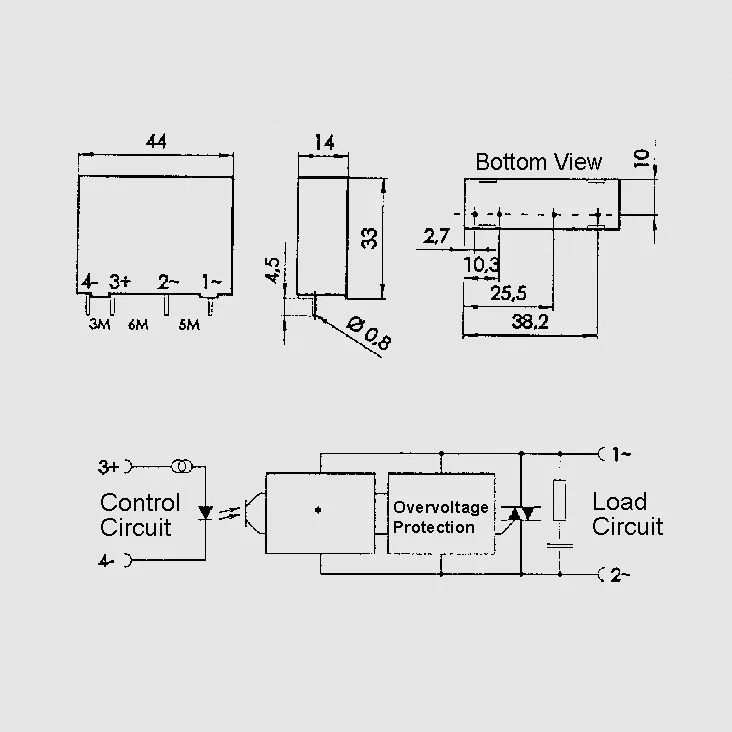

COMUS Electronic Solid State Relays for Alternating Voltage Triac Output
Series: WGA8_
Case: SIP/SIL
| Technical Specifications |
| • Isolation voltage 4kV • Operating temperature range -20...+80°C |
 |
| WGA8-_ | UContr | ULoad | UDRM | IT | ITSM | [V DC] | [V AC] | [VPeak] | [A] | [A] | 6D03R | 3...32 | 48...280 | 600 | 3 | 100 | 8D05Z | 3...32 | 24...420 | 800 | 5 | 120 | 12D05R | 3...32 | 24...480 | 1200 | 5 | 120 | |||||||
| UContr = Control Voltage, ULoad = Load Voltage (Z = Zero-Voltage Switching, R = Instantaneous Switching), UDRM = Max. Off-State Output Voltage, IT = Max. Effective On-State Current, ITSM = Peak Forward Surge Current | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Note |
| We recommend you use the random switching R-Version for inductive loads and the zero-voltage switching Z-version for capacitive and resistive loads. |
|
| Labelling |
 |
|
| Approvals |
WGA8-6D03R:  WGA8-12D05R:  |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.comus.be |
|
