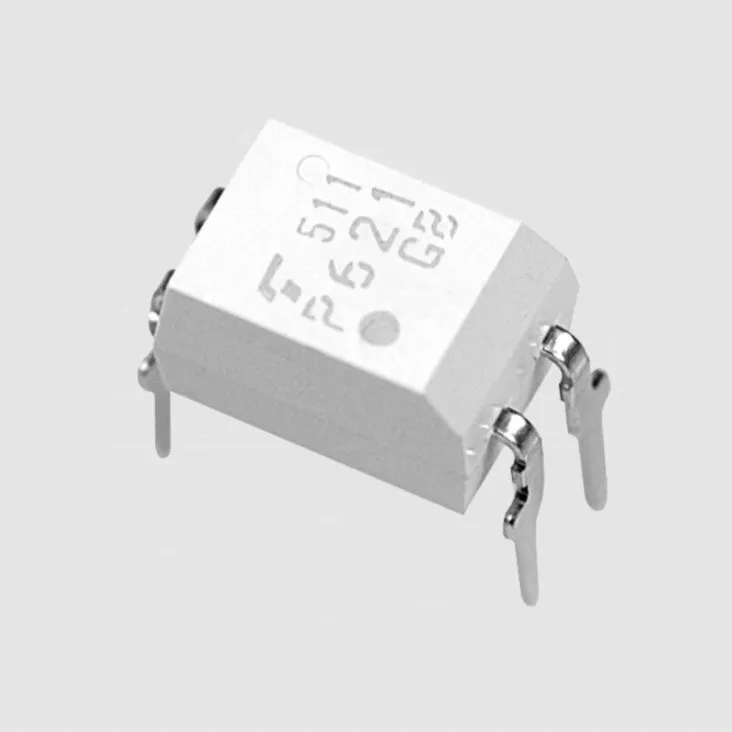

Optoc. 5kV 55V 60mA >50% DIP4
Varenummer:
79-071
Varekode: TLP621
Vægt: 0 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
X7265
TOSHIBA (TOS) DC Optocouplers
Transistor Output
Series: TLP_
Case: DIP/DIL, MFP
TOSHIBA (TOS) DC Optocouplers
Transistor Output
Series: TLP_
Case: DIP/DIL, MFP
| Technical Specifications |
| Part Nr. | Approvals | UISO | CTR | @IF | UCEO |
| [V AC] | [%] | [mA] | [V] | ||
| TLP124 | 1) | 3750 | >100 | 1 | 80 |
| TLP181 | 1) | 3750 | >50 | 5 | 80 |
| TLP504A | 1) | 2500 | >50 | 5 | 55 |
| TLP621 | 1)4)6) | 5000 | >50 | 5 | 55 |
| TLP621-2 | 1)6) | 5000 | >50 | 5 | 55 |
| TLP621-4 | 1)6) | 5000 | >50 | 5 | 55 |
| UISO = Isolation Voltage, CTR = Current Transfer Ratio, IF = Forward Current, UCEO = Collector Emitter Voltage At Open Base, 1) UL, 2) TV, 3) VDE, 4) SEMKO, 5) DEMKO, 6) BS/EI | |||||
 | |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| Toshiba http://www.semicon.toshiba.co.jp/eng |
|
