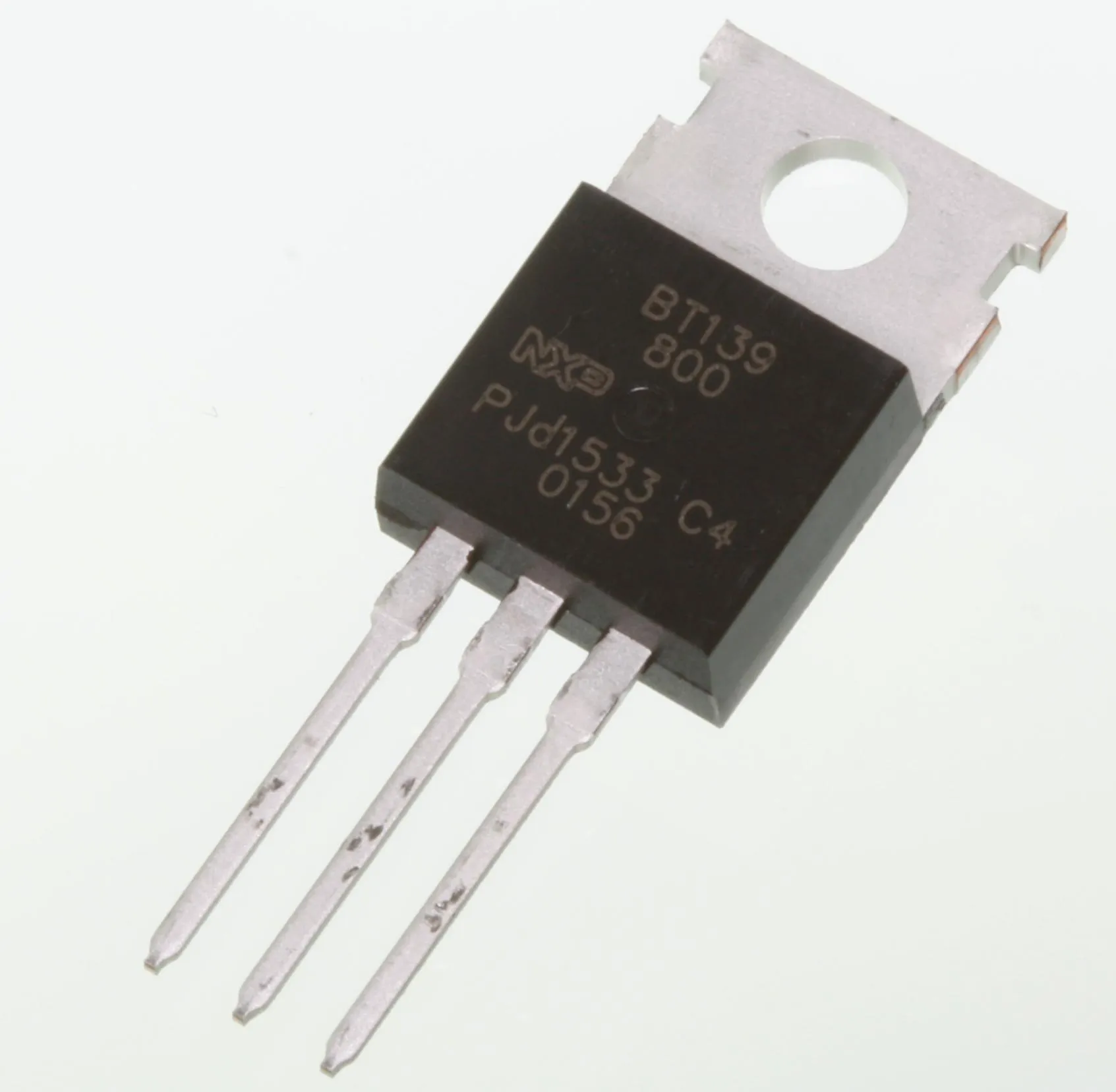

Triac 16A 800V 35mA TO220AB
Varenummer:
79-030
Varekode: BT139-800
Vægt: 2 g
9 stk.
på lager
| Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT |
| [V] | [A] | [°C] | [A] | [mA] | |
| BT137-600 | 600 | 8 | 102 | 65 | 35 |
| BT137X-600 | 600 | 8 | 73 | 65 | 35 |
| BT138-600 | 600 | 12 | 99 | 95 | 35 |
| BT138X-600 | 600 | 12 | 56 | 95 | 35 |
| BT138-800 | 800 | 12 | 99 | 95 | 35 |
| BT138X-800 | 800 | 12 | 56 | 95 | 35 |
| BT139-600 | 600 | 16 | 99 | 155 | 35 |
| BT139-800 | 800 | 16 | 99 | 155 | 35 |
| BT139X-800 | 800 | 16 | 38 | 155 | 35 |
| BTA140-600 | 600 | 25 | - | 190 | 35 |
| BTA140-800 | 800 | 25 | - | 190 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current (I - III) | |||||
 | |||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| NXP http://www.nxp.com |
|
