Thyristor 8A 600V TO220AB
Varenummer:
78-995
Varekode: TIC116M
Vægt: 1 g
20 stk.
på lager
Gruppe:
V8215
BOURNS Thyristors up to 12A
Series: TIC1_

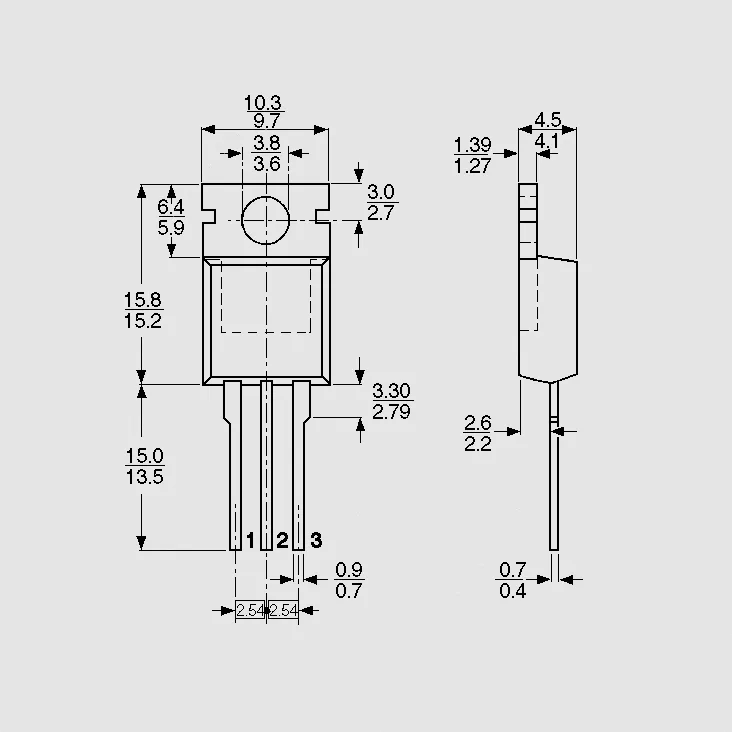

Case: TO220AB
BOURNS Thyristors up to 12A
Series: TIC1_
Case: TO220AB
| Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT |
| [V] | [A] | [C] | [A] | [mA] | |
| TIC106M | 600 | 5 | 80 | 30 | 0,2 |
| TIC106N | 800 | 5 | 80 | 30 | 0,2 |
| TIC108M | 600 | 5 | 80 | 20 | 1,0 |
| TIC108N | 800 | 5 | 80 | 20 | 1,0 |
| TIC116M | 600 | 8 | 70 | 80 | 20 |
| TIC116N | 800 | 8 | 70 | 80 | 20 |
| TIC126M | 600 | 12 | 70 | 100 | 20 |
| TIC126N | 800 | 12 | 70 | 100 | 20 |
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current | |||||
 | |||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Bourns http://www.bourns.com |
|
