Thyristor 4A 600V TO225AA
Varenummer:
78-993
Varekode: C106M1G
Vægt: 2 g
6 stk.
på lager
Produktoplysninger
- Current It av: 1.7A
- Gate Trigger Current Max, Igt: 500µA
- Gate Trigger Voltage Max Vgt: 1V
- Holding Current Max Ih: 3mA
- MSL: -
- No. of Pins: 3
- On State RMS Current IT(rms): 2.5A
- Operating Temperature Max: 110°C
- Peak Non Rep Surge Current Itsm 50Hz: 20A
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- SVHC: No SVHC (17-Dec-2014)

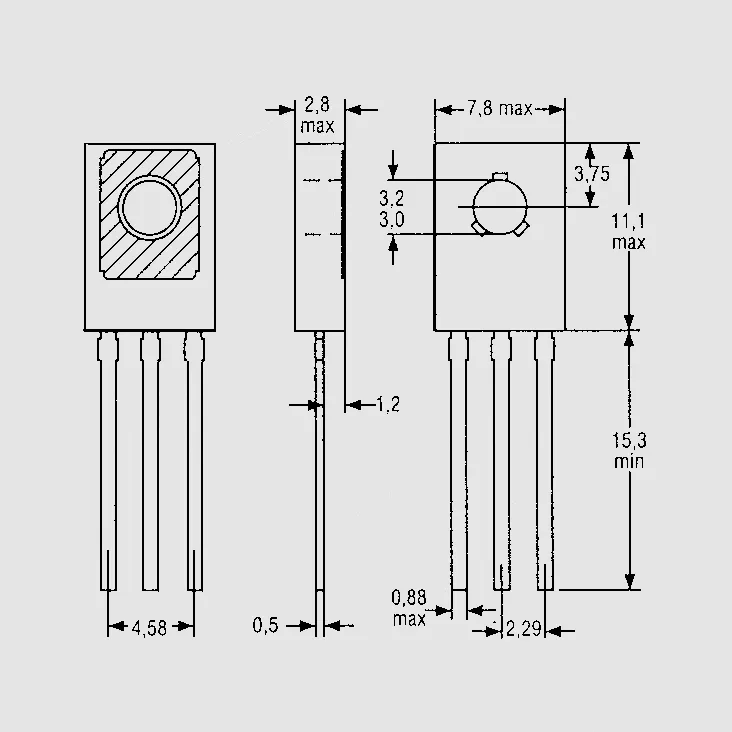

- Thyristor Case Style: TO-225AA
Produktfiler
