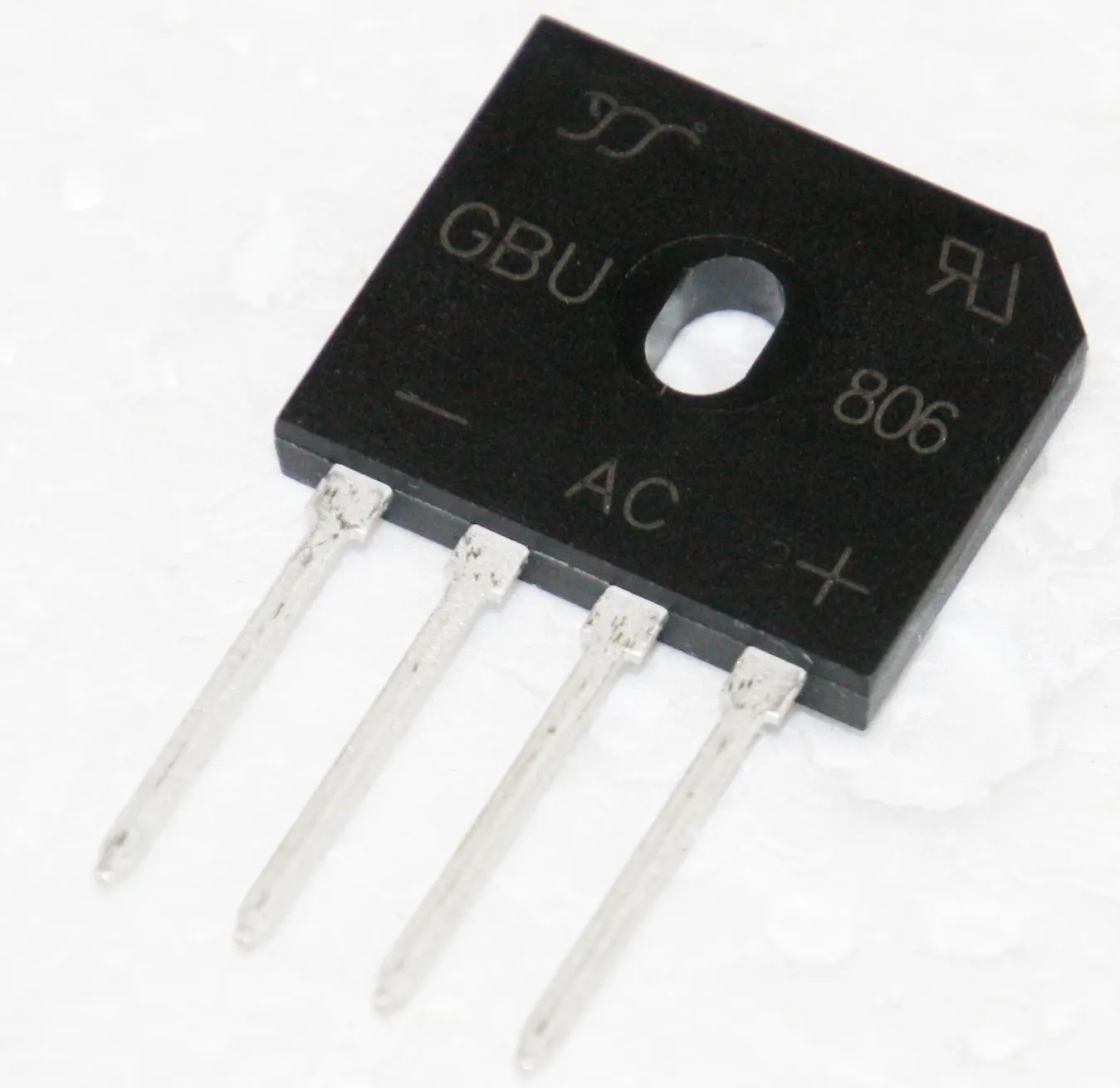

Flad brokobling 8A 420V(RMS) 5/5mm
Varenummer:
78-902
Varekode: GBU806
Vægt: 6 g
44 stk.
på lager
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Operating temperature range -55...+150°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR | [V] | [V] | [V] | [A] | [µA] | GBU406 | 600 | 420 | 1,0 | 4,0 | 5 | GBU408 | 800 | 560 | 1,0 | 4,0 | 5 | GBU601 | 100 | 70 | 1,0 | 6,0 | 5 | GBU606 | 600 | 420 | 1,0 | 6,0 | 5 | GBU608 | 800 | 560 | 1,0 | 6,0 | 5 | GBU801 | 100 | 70 | 1,0 | 8,0 | 5 | GBU806 | 600 | 420 | 1,0 | 8,0 | 5 | GBU808 | 800 | 560 | 1,0 | 8,0 | 5 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Approval |
 E95060 |
|
