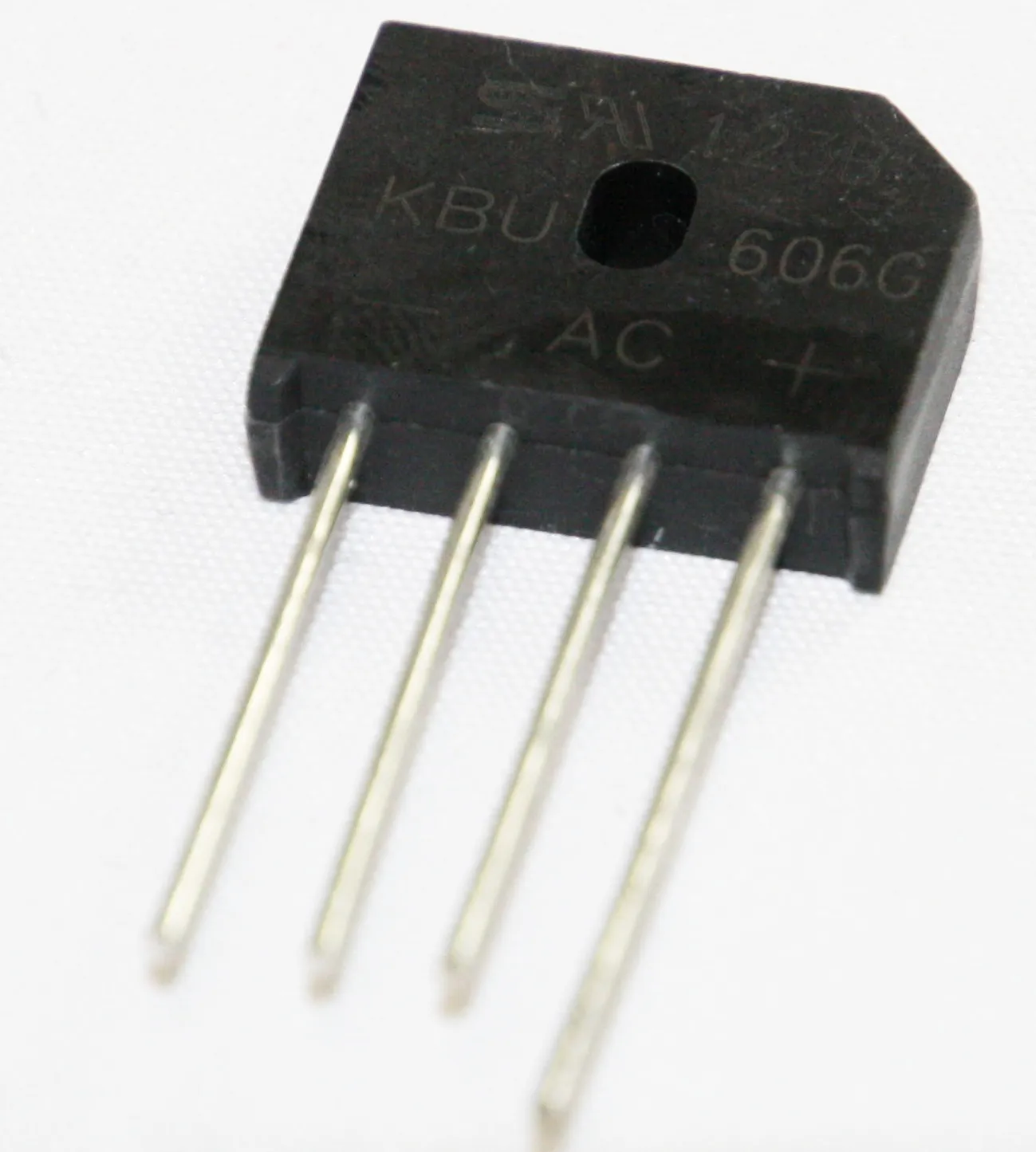

Bridge Rect. 6A 560V(RMS) 5/5mm

Name: Bridge Rect. 6A 560V(RMS) 5/5mm
SKU: 78884
Price: 13.49 DKK
Availability: InStock

Varenummer: 78-884

Varekode: KBU606G

Vægt: 8 g

85 stk. på lager

Technical Specifications

• The plastic conforms to UL94V-0
• Max. solderability 250°C/10s
• Operating temperature range -55...+150°C


Part Nr.	U_RRM	U_RMS	U_F	I_F(AV)	I_R
	[V]	[V]	[V]	[A]	[μA]
KBU603G	200	140	1,0	6,0	5
KBU605G	600	420	1,0	6,0	5
KBU606G	800	560	1,0	6,0	5
U_RRM = Max. Peak Recurrent Reverse Voltage, U_RMS = Max. RMS Voltage, U_F = Max. Forward Voltage, I_F(AV) = Max. Average Forward Rectified Current, I_R = Max. Reverse Current

Approvals

E96005

Manufacturer

http://www.taiwansemi.com
