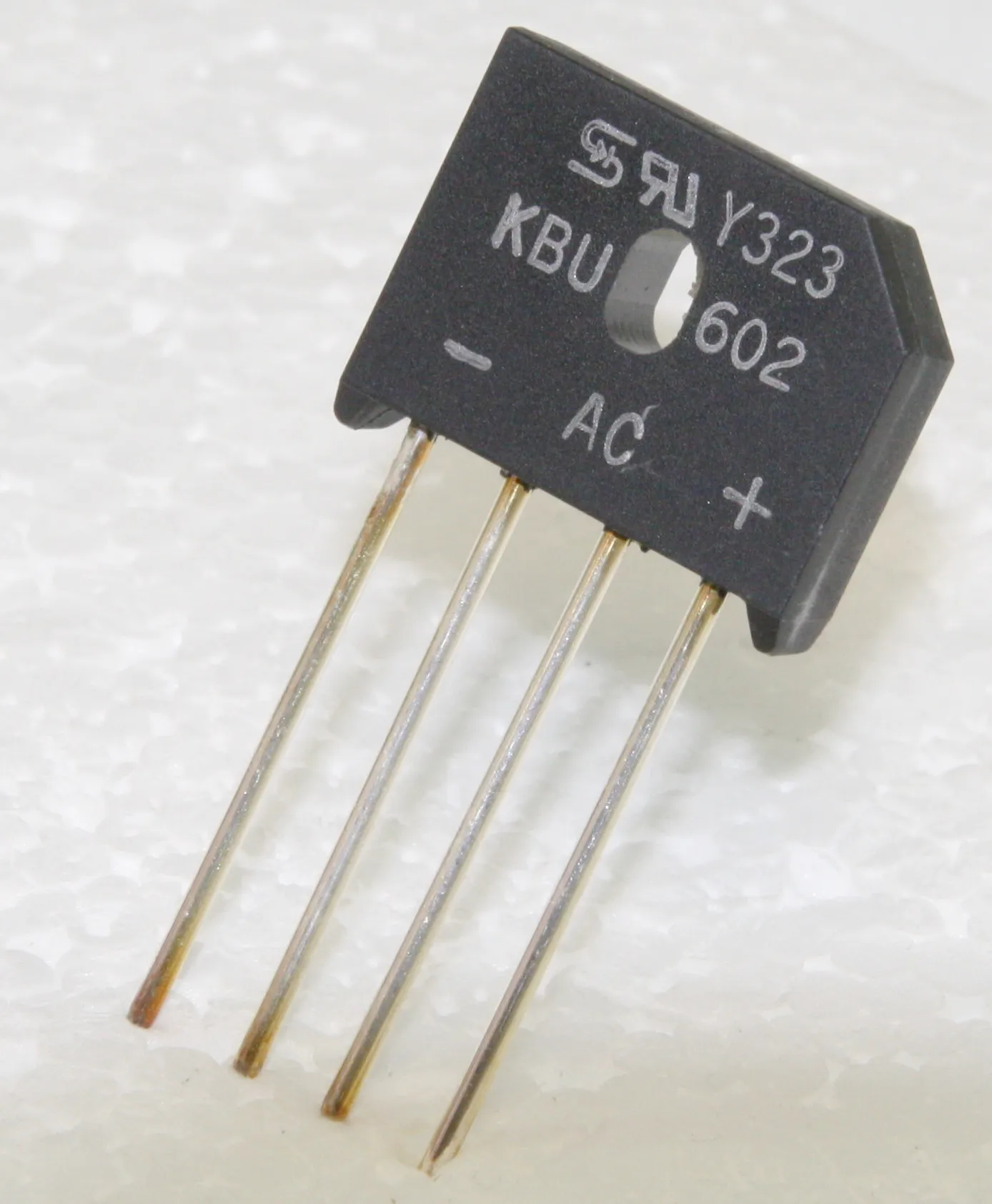

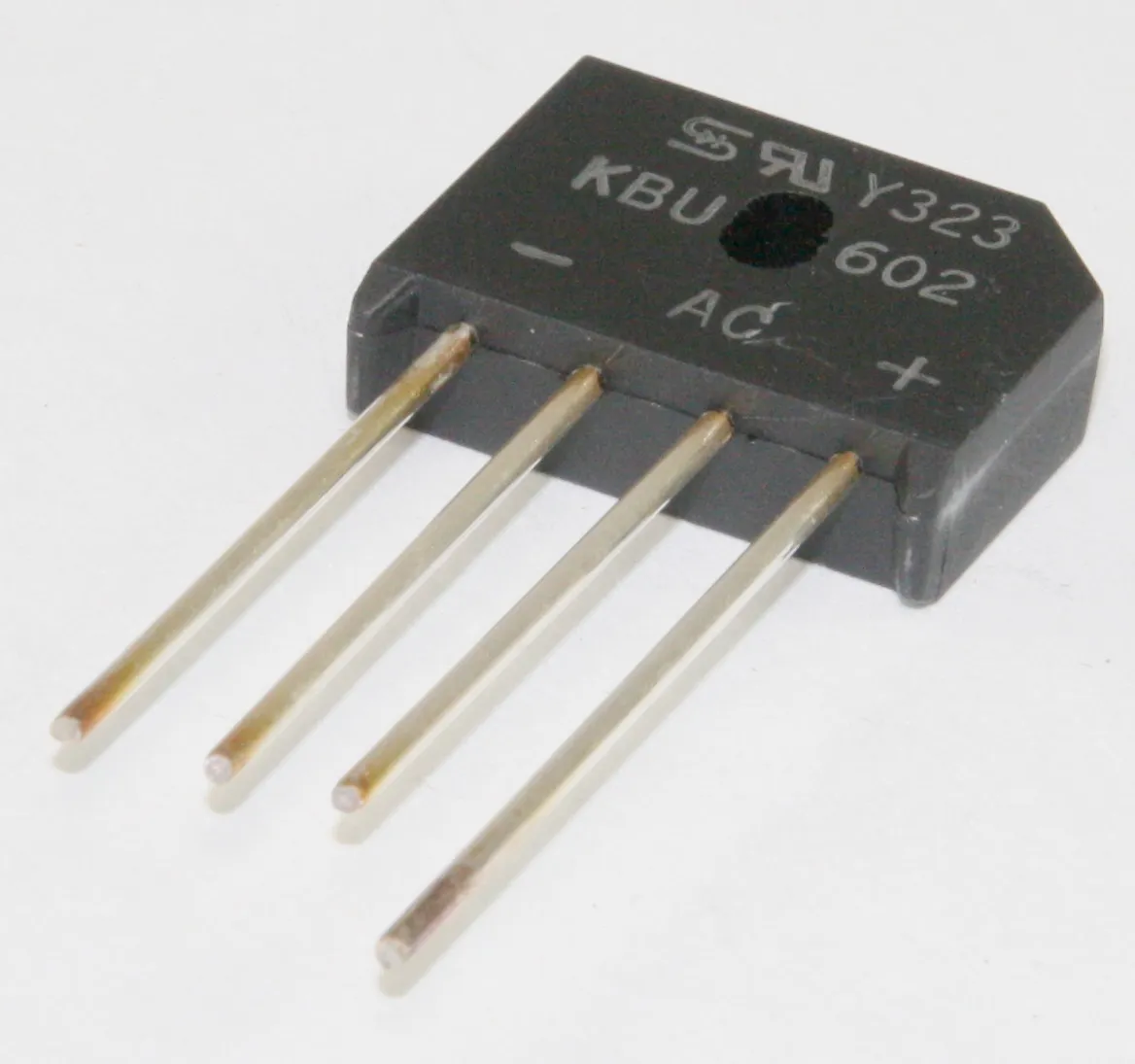

Bridge Rect. 6A 70V(RMS) 5/5mm
Varenummer:
78-876
Varekode: KBU602
Vægt: 7 g
254 stk.
på lager
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Leads solderable per JESD22-B102 • Max. solderability 260°C/10s • Operating temperature range -55...+150°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| KBU602G | 100 | 70 | 1,1 | 6,0 | 5 |
| KBU603G | 200 | 140 | 1,1 | 6,0 | 5 |
| KBU604G | 400 | 280 | 1,1 | 6,0 | 5 |
| KBU605G | 600 | 420 | 1,1 | 6,0 | 5 |
| KBU606G | 800 | 560 | 1,1 | 6,0 | 5 |
| KBU607G | 1000 | 700 | 1,1 | 6,0 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
